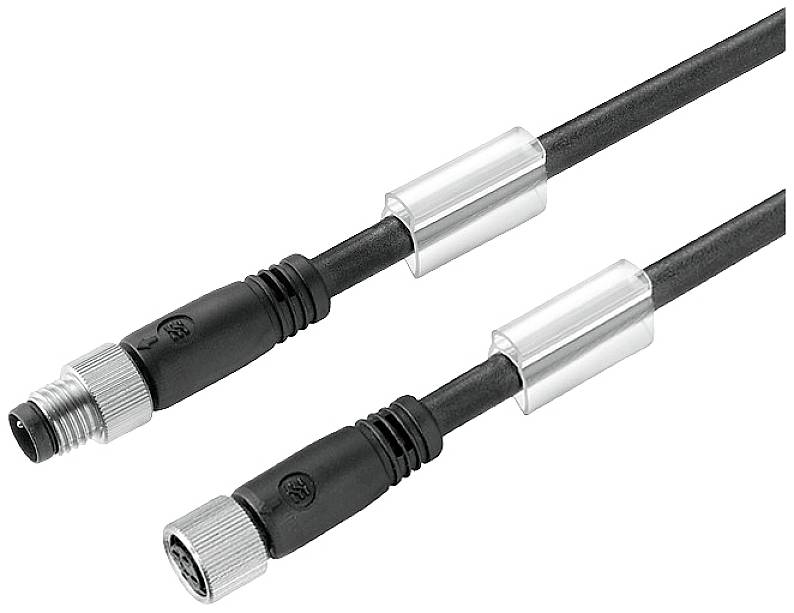

Weidmüller 1824570080 Sensor/actuator cable M8 Socket 0.80 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connector type
Socket
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
M8 socket, straight
Datasheet (PDF)
Technical specifications
- Type
SAIL-M8GM8G-3-0.8U
- Product type
Sensor/actuator cable
- Connector type
Socket
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
M8 socket, straight
- No. of pins
3
- Cable length
0.80 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
4.10
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Factory colour
Black
- Thread type connection side
M8
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
1824570080
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1915330 Weidmüller 1824570080 Sensor/actuator cable M8 Socket 0.80 m No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1915330 Weidmüller 1824570080 Sensor/actuator cable M8 Socket 0.80 m No. of pins (RJ): 3 1 pc(s)
Description
Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration. Exactly at this point, our developers and a wide variety of different M8 and M12 sensor/actuator cables designed that also make sure exactly what you need for your application.
