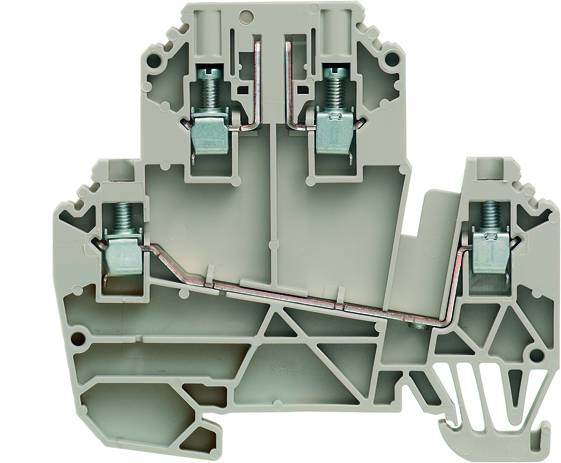

Weidmüller 1833600000 Serial test terminal 5.1 mm Screws Configuration: Terre Dark beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Serial test terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Checks racing series terminal
Our service for you
Technical specifications
- Product type
Serial test terminal
- Features
+ lever
- Connection
Screws
- Configuration
Terre
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.1 mm
- No. of rows
2
- Factory colour
Dark beige
- Manufacturer part #
1833600000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WDK 2.5/TR-DU/O TNHE
- Dim
(L x W x H) 72.5 x 5.1 x 66 mm
- Width
5.1 mm
- Height
66 mm
- Length
72.5 mm
- RoHS-compliant
Yes
- Weight
16 g
- Type
WDK 2.5/TR-DU/o TNHE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 359516 Weidmüller 1833600000 Serial test terminal 5.1 mm Screws Configuration: Terre Dark beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 359516 Weidmüller 1833600000 Serial test terminal 5.1 mm Screws Configuration: Terre Dark beige 50 pc(s)
Description
Checks racing series terminal. With the new wdk 2.5 YOU PE TR series can signal circuits space-saving with only one series terminal wired. While the signal via the upper level of the terminal block can be fed, offers the lower connection level space for the neutral conductor. In addition, your shield connection space saving with the integrated PE connection can be connected, what additional PE terminals or other terminal facilities in the control cabinet superfluous. Depending on the signal and requirements, the upper terminal level with a lever or with a pluggable safety lever SIHA. With only 5.1 mm width offers the wdk 2.5 YOU PE TR so far highest wiring density under all screw terminal blocks for the routing of signals. Without high flexibility and functionality to compromise.
This text is machine translated.
This text is machine translated.
