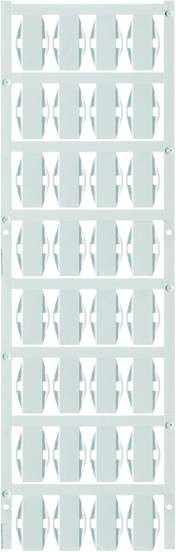

Weidmüller 1852390000 SFX 10/23 NE WS V2 Lead marker Fitting type: Cable tie Writing area: 5 x 23.50 mm White No. of mar
EAN:
Part number:
Item no:
Product type
Lead marker
Fitting type
Cable tie
Writing area length
5 mm
Writing area width
23.50 mm
Type
SFX 10/23 NE WS V2
Datasheet (PDF)
Technical specifications
- Depth: 0.8 mm
- Net weight: 0.606 g
- flammability class according to UL 94: V-2
- Material color according to resistance code: 9
- conductor cross-section, max.: 500 mm²
- conductor cross-section, min.: 16 mm²
- Type
SFX 10/23 NE WS V2
- Product type
Lead marker
- Fitting type
Cable tie
- Writing area length
5 mm
- Writing area width
23.50 mm
- Writing area
5 x 23.50 mm
- Material
PA66
- Suited for series
Single wires
Universal usage
- Features
UL94 flammability rating
Halogen-free
- Series
SFX
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Suitable for outside Ø (min.)
7 mm
- Suitable for outside Ø (max.)
40 mm
- Factory colour
White
- No. of markers
160
- Dim
(L x W x H) 23 x 11 x 23 mm
- Industrial packaging
Yes
- Content
160 pc(s)
- Width
11 mm
- Height
23 mm
- Length
23 mm
- RoHS-compliant
Yes
- Depth
0.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 360855 Weidmüller 1852390000 SFX 10/23 NE WS V2 Lead marker Fitting type: Cable tie Writing area: 5 x 23.50 mm White No. of mar
User & Safety Instructions
User & Safety Instructions 360855 Weidmüller 1852390000 SFX 10/23 NE WS V2 Lead marker Fitting type: Cable tie Writing area: 5 x 23.50 mm White No. of mar
Description
From a minimum cable diameter of 7.0 mm, the Slim Fix-Markierer the SFX-series are used. The maximum diameter is only limited by the length of the cable tie. Within this spectrum, the diversity of this cable ties program in terms of variability always the best marker size for your labelling needs
. Regardless of the size selection you will find all the information with good readability always enough space. Special handling advantages provide variants with ergonomically intelligent design makes it easy threading of the anschragung cable tie implementation: a cable tie. This contributes to a time saving and safe locking of the SlimFix SFX,
What is of importance, especially in case of high mechanical stress.
This text is machine translated.
. Regardless of the size selection you will find all the information with good readability always enough space. Special handling advantages provide variants with ergonomically intelligent design makes it easy threading of the anschragung cable tie implementation: a cable tie. This contributes to a time saving and safe locking of the SlimFix SFX,
What is of importance, especially in case of high mechanical stress.
This text is machine translated.
