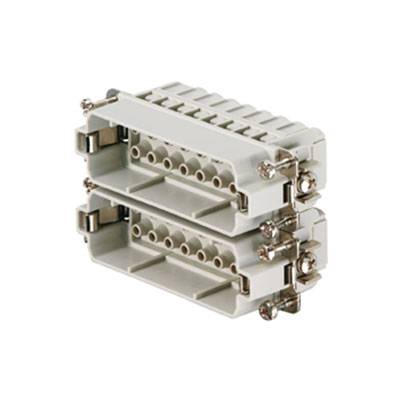

Weidmüller 1875620000 Pin inset RockStar® HDC HA 16 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HA
Features
copper-plated
Total no. of pins
16 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HA 16 MC 17 - 32
Technical specifications
- Net weight: 39 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 23 mm
- Height: 29 mm
- Depth: 73 mm
- Length Socket: 73 mm
- Size: 5
- Series: HA
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 14
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 8 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Height of plug: 29 mm
- Product type
Pin inset
- Series
RockStar® HDC HA
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
16 + PE
- Core cross section (max.)
4 mm²
- Number of pins
16
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
23
29 mm
73 mm
250 V
16
Pin
-40-125 °C
V0
4 kV
Crimp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204485 Weidmüller 1875620000 Pin inset RockStar® HDC HA 16 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204485 Weidmüller 1875620000 Pin inset RockStar® HDC HA 16 + PE Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 16 A, number of poles: 16, crimp connection, size: 7. The small and narrow HA series is used, for example, where the space is limited. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 32, rated current 16 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
