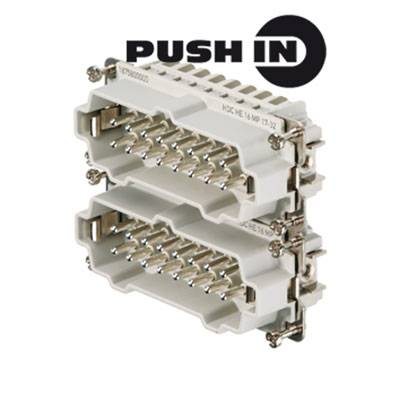

Weidmüller 1875800000 Pin inset RockStar® HDC HE 16 + PE Push-in connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Push-in connector
Series
RockStar® HDC HE
Features
copper-plated
Total no. of pins
16 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HE16MP 17-32
Technical specifications
- Net weight: 78 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 34.3 mm
- Depth: 84.5 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 12
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 10 mm
- Wire stripping length PE connection: 10 mm
- max. 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Surface: Silver passivated
- Material: Copper alloy
- Blade dimension Slotted (screw connection): SD 0.5 x 3.0
- Height of plug: 34.3 mm
- Product type
Pin inset
- Series
RockStar® HDC HE
- Features
copper-plated
- Connection
Push-in connector
- Total no. of pins
16 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
16
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204488 Weidmüller 1875800000 Pin inset RockStar® HDC HE 16 + PE Push-in connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204488 Weidmüller 1875800000 Pin inset RockStar® HDC HE 16 + PE Push-in connector 1 pc(s)
Description
Pin insert. HDC-Use, pin, 500 V, 16 A, number of poles: 16, push-in, size: 6. The Push-In connection technology is a direct plug-in technique. The Pretreated conductor can be used without additional tools can be inserted directly into the conductor connection level. Number of poles: 32, rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC, push-in technology.
