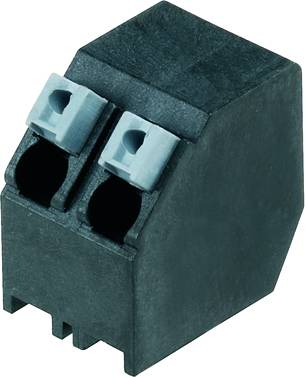

Weidmüller 1884550000 Spring-loaded terminal 1.5 mm² Number of pins 4 Black 28 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded terminal
CS
5 mm
Pins per row
4
Number of pins
4
Connection
Print
Push-in connector
Datasheet (PDF)
Highlights & Details
Spring-loaded terminal
- Content 28 pc(s)
Our service for you
Technical specifications
- Type
LSF-SMT 5.00/04/135 1.5SN BK TU
- Product type
Spring-loaded terminal
- Features
+ push-in spring bracket
- CS
5 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Series
LSF
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Print
Push-in connector
- Nominal current
12 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
12 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Copper alloy
- Factory colour
Black
- Wire protection
Yes
- Weight
4.5 g
- Manufacturer part #
1884550000
- Industrial packaging
Yes
- Content
28 pc(s)
- Nominal voltage
300 V
- Width
19.2 mm
- Height
14.4 mm
- Length
12.7 mm
- Type
LSF-SMT 5.00/04/135 1.5SN BK TU
- UKCA
not relevant
