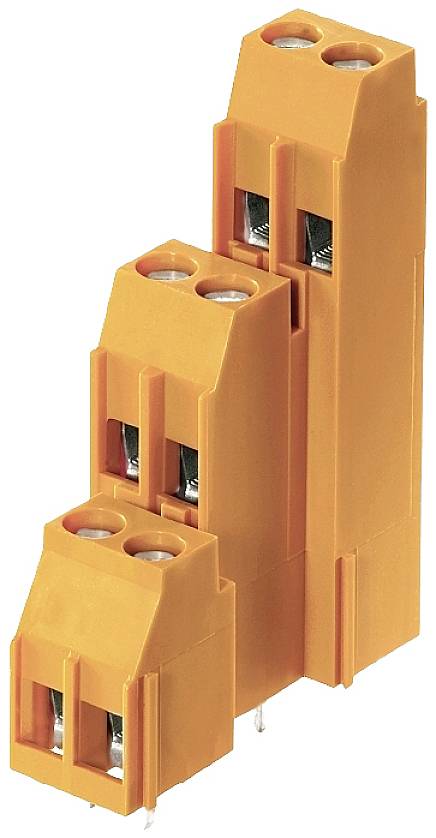

Image similar
Weidmüller 1934350000 Screw terminal 4 mm² Number of pins 9 Orange 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw terminal
CS
5.08 mm
Pins per row
9
Number of pins
9
Highlights & Details
- Content 50 pc(s)
Our service for you
Technical specifications
- PCB angle/conductor connection 0°/180° (horizontal)Length of pin 3.2 mmProtection class, mounted: IP20Number of floors: 3Dimensioning surge voltage: 4 kVOperating temperature: -50 °C - +120 °COvervoltage category IIPollution level: 2Flammability class of the insulating material according to UL 94: V0
- Packaging type
Piece
- Type
LL3R 5.08/09/90 3.2SN OR BX
- Product type
Screw terminal
- CS
5.08 mm
- No. of rows
3
- Pins per row
9
- Number of pins
9
- Series
LL3R
- Connection
Screws
Soldering
THT
- Nominal current
20 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Enclosure material
Polyamide
- Factory colour
Orange
- Manufacturer part #
1934350000
- Content
50 pc(s)
- Nominal voltage
300 V
- Height
48.3 mm
- UKCA
not relevant
