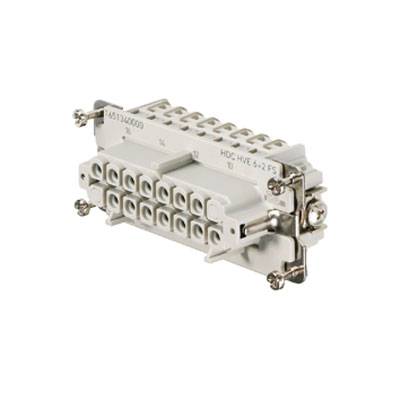

Weidmüller 1967240000 Socket inset RockStar® HDC HVE 6 + 2 + PE Pull spring 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Pull spring
Series
RockStar® HDC HVE
Features
copper-plated
Total no. of pins
6 + 2 + PE
Datasheet (PDF)
Highlights & Details
Socket insert
- HDC HVE 6+2 FT CtH
Technical specifications
- Net weight: 67 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 33 mm
- Depth: 84.5 mm
- Height Socket: 33 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: HVE
- Rated voltage (DIN EN 61984): 830 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 20 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 12
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 8 mm
- Wire stripping length PE connection: 10 mm
- max. 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Surface: Silver passivated
- Material: Copper alloy
- Slotted blade dimension (screw connection): SD 0.5 x 3.0
- Number of power contacts: 6
- Product type
Socket inset
- Series
RockStar® HDC HVE
- Features
copper-plated
- Connection
Pull spring
- Total no. of pins
6 + 2 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
6
2
- Core cross section (min.)
0.25 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256180 Weidmüller 1967240000 Socket inset RockStar® HDC HVE 6 + 2 + PE Pull spring 1 pc(s)
User & Safety Instructions
User & Safety Instructions 256180 Weidmüller 1967240000 Socket inset RockStar® HDC HVE 6 + 2 + PE Pull spring 1 pc(s)
Description
Socket insert. HDC-insert, female, 830 V, 20 A, 8 pins, spring-cage connection, size: 6. The high-voltage inserts the PDB series are equipped with two pursuing contacts. The Conductor Connection level is designed as a tension spring element. This makes it virtually maintenance-free and there is a safe and permanent connections, which are vibration-proof. Number of pins: 8, Rated current 23 A, rated voltage 830 V, rated voltage according to UL/CSA: 600 V AC/DC. Spring-cage connection.
