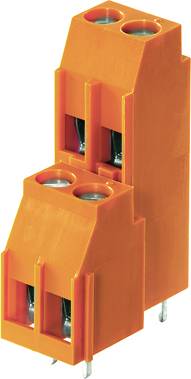

Weidmüller 1977310000 2-tier terminal 4 mm² Number of pins 16 Orange 20 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5 mm
Pins per row
16
Number of pins
16
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Two-level terminal block
- Content 20 pc(s)
Our service for you
Technical specifications
- Type
LL2N 5.00/16/90 3.2SN OR BX
- Product type
2-tier terminal
- CS
5 mm
- No. of rows
2
- Pins per row
16
- Number of pins
16
- Series
LL
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
20 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
28.6 g
- Manufacturer part #
1977310000
- Industrial packaging
Yes
- Content
20 pc(s)
- Nominal voltage
300 V
- Width
38.19 mm
- Height
34.32 mm
- Length
21.99 mm
- Type
3.2SN 5.00/16 LL 2N/90 OR BX
- UKCA
not relevant
