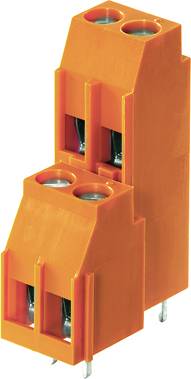

Weidmüller 1977580000 2-tier terminal 4 mm² Number of pins 28 Orange 10 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5.08 mm
Pins per row
28
Number of pins
28
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Two-level terminal block
Our service for you
Technical specifications
- Type
LL2N 5.08/28/90 3.2SN OR BX
- Product type
2-tier terminal
- CS
5.08 mm
- No. of rows
2
- Pins per row
28
- Number of pins
28
- Series
LL
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
20 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
43.86 g
- Manufacturer part #
1977580000
- Industrial packaging
Yes
- Content
10 pc(s)
- Nominal voltage
300 V
- Width
69.23 mm
- Height
34.32 mm
- Length
21.99 mm
- Type
3.2SN 5.08/28 LL 2N/90 OR BX
- UKCA
not relevant
