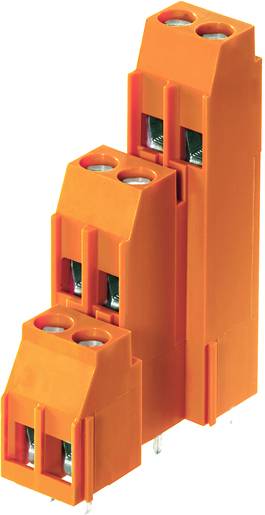

Weidmüller 1978950000 3-tier terminal 4 mm² Number of pins 42 Orange 10 pc(s)
EAN:
Part number:
Item no:
Product type
3-tier terminal
CS
5 mm
Pins per row
42
Number of pins
42
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Three-level terminal
- Content 10 pc(s)
Our service for you
Technical specifications
- Type
LL3R 5.00/42/90 3.2SN OR BX
- Product type
3-tier terminal
- CS
5 mm
- No. of rows
3
- Pins per row
42
- Number of pins
42
- Series
LL
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
20 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
182.88 g
- Manufacturer part #
1978950000
- Industrial packaging
Yes
- Content
10 pc(s)
- Nominal voltage
300 V
- Width
73.19 mm
- Height
48.3 mm
- Length
32 mm
- Type
LL3 R 5.00/42/90 3.2SN OR BX
- UKCA
not relevant
