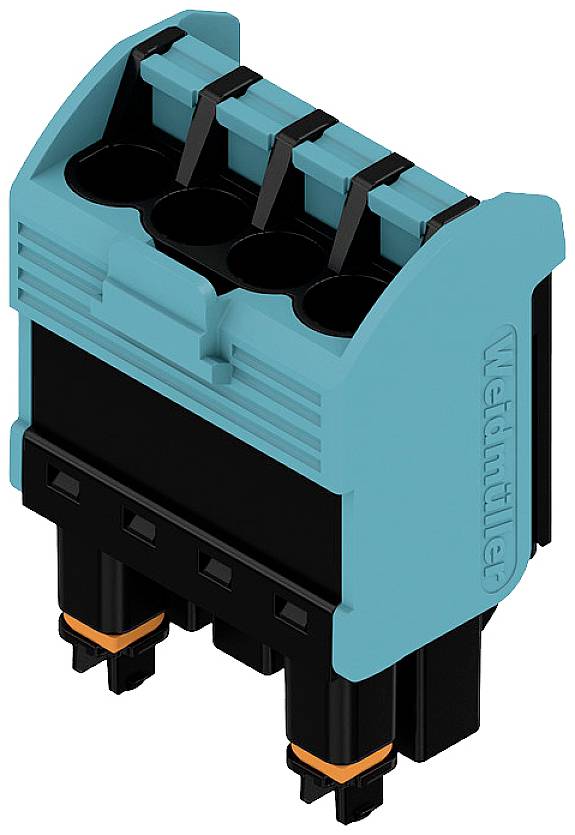

Weidmüller 1989090000 PCB connector Total number of pins 4 No. of rows 1 78 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
4
CS
5 mm
Content
78 pc(s)
Total number of pins
4
Datasheet (PDF)
Highlights & Details
- Total number of pins 4
- No. of rows 1
- Content 78 pc(s)
Our service for you
Technical specifications
- Depth: 30.82 mm
- Insulating material: PA 66 GF 30
- Storage temperature: -40 °C to +85 °C.
- Creepage distance min. 3.2 mm
- Air distance min.: 3 mm
- Actuator color: Blue
- Actuator material: PBT
- Product type
PCB connector
- Total no. of pins
4
- Total number of pins
4
- No. of rows
1
- CS
5 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Pins per row
4
- Connection
Pull spring
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1989090000
- Content
78 pc(s)
- Contact material
Copper
- Width
22.15 mm
- Length
14.6 mm
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Type
BHF 5.00/04/180LH BK/BL
26 AWG - 14 AWG
- Dim
(L x W) 14.6 mm x 22.15 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
22.15 mm x 14.6 mm x 30.82 mm
- Nominal voltage
300 V
- Number of pins
4
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
