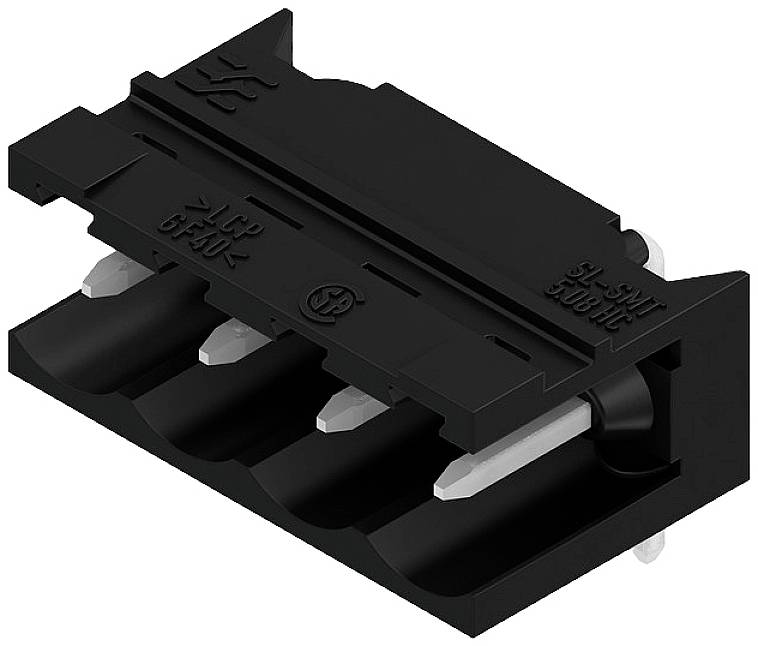

Weidmüller 1993930000 PCB connector Total number of pins 4 100 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
4
CS
5.08 mm
Content
100 pc(s)
Total number of pins
4
Datasheet (PDF)
Highlights & Details
- Total number of pins 4
- Content 100 pc(s)
Our service for you
Technical specifications
- Depth: 12 mm
- PCB mounting: THT/THR solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Insulating material: LCP GF
- Storage temperature: -25 °C to +55 °C.
- Insertion force/pole 9 N.
- Pulling power/pole: 7 N.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
4
- Total number of pins
4
- CS
5.08 mm
- Nominal current
18.5 A
- Nominal current - rounded value
18.5 A
- Connection
THT
THR
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1993930000
- Content
100 pc(s)
- Contact material
CuMg
- Width
20.32 mm
- Height
11.7 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL-SMT 5.08HC/04/90V 3.2SN BK BX
- Dim
(W x H) 20.32 mm x 11.7 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
20.32 mm x 11.7 mm x 12 mm
- Nominal voltage
300 V
- Number of pins
4
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
