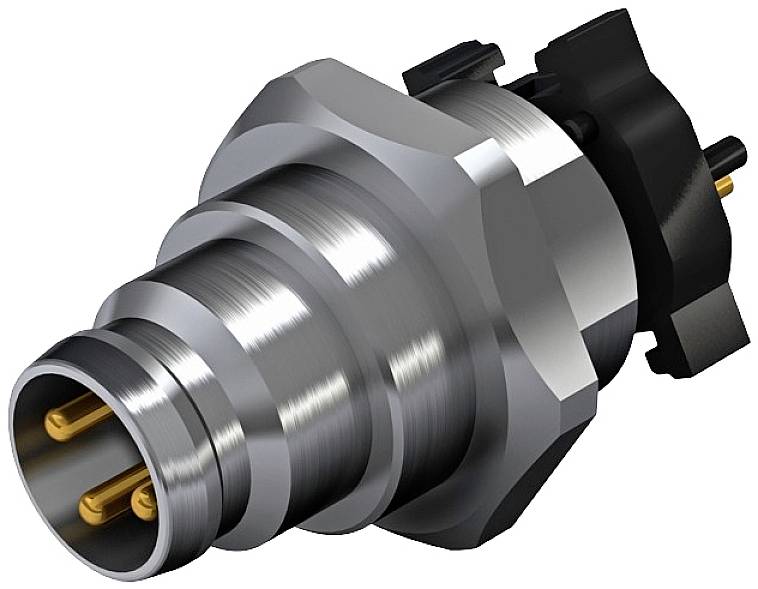

Weidmüller 2422470000 Sensor/actuator connector M8 Plug, mount No. of pins (RJ): 4 25 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, mount
Connector standard
Sensor connector
No. of pins
4
Nominal voltage
60 V
Datasheet (PDF)
Highlights & Details
Sensor/actuator connector, assembled SAIE-M8S-4-F9 SMT
Our service for you
Technical specifications
- Type
SAIE-M8S-4-F9SMT
- Product type
Sensor/actuator connector
- Connector type
Plug, mount
- Connector standard
Sensor connector
- No. of pins
4
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Soldering
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuZn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Front panel fitting
- Manufacturer part #
2422470000
- Content
25 pc(s)
- RoHS-compliant
Yes
- Total number of pins
4
- Connector contact surface
Au (gold)
- Case material
CuZn, Ni-plated
- UKCA
not relevant
