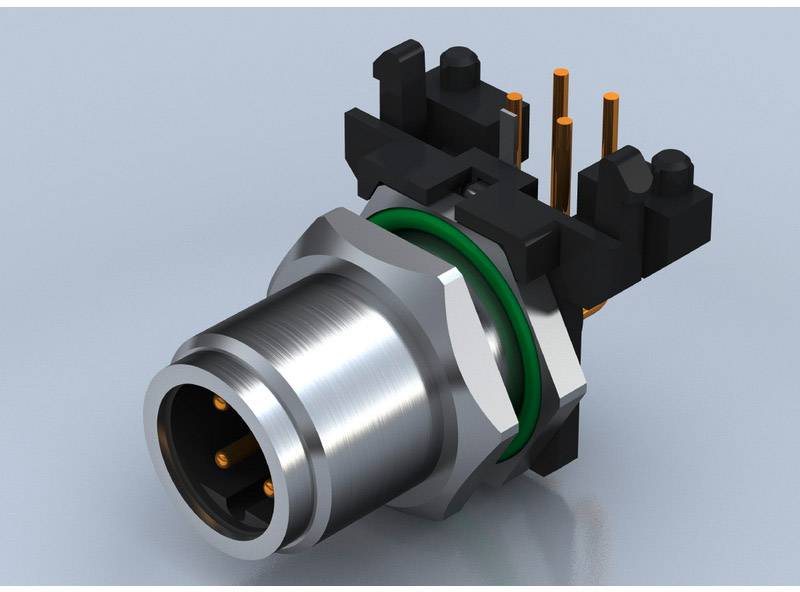

Image similar
Weidmüller 2424350000 Sensor/actuator connector M12 Plug, mount No. of pins (RJ): 4 10 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, mount
Connector standard
Sensor connector
No. of pins
4
Nominal voltage
250 V
Datasheet (PDF)
Highlights & Details
Sensor/Actuator plug connector, by the meter SAIEW-M 12 SB-4-HTL
Our service for you
Technical specifications
- Type
SAIEW-M12SB-4-HTL
- Product type
Sensor/actuator connector
- Connector type
Plug, mount
- Connector standard
Sensor connector
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Soldering
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
B
- Contact material
CuZn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
- Manufacturer part #
2424350000
- Content
10 pc(s)
- RoHS-compliant
Yes
- Total number of pins
4
- Connector contact surface
Au (gold)
- Case material
CuZn, Ni-plated
- UKCA
not relevant
