Name: Weidmüller 2429670000 Screw terminal 4 mm² Number of pins 19 Orange 18 pc(s)
Brand: Weidmüller
SKU: 1949620

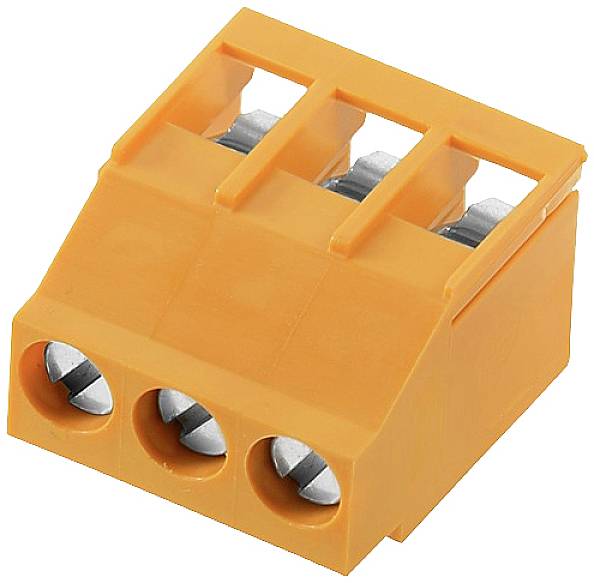

An orange, three-pin plug connector with metal contacts, used for connecting electrical wires.

Product type

Screw terminal

5 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Type: LL 5.00/19/180 3.2SN OR BX

Product type: Screw terminal

CS: 5 mm

No. of rows: 1

Pins per row: 19

Number of pins: 19

Series: LL

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Connection: Print
Screw terminal

Nominal current: 20 A

Cross section (flexible) (min.): 0.5 mm²

Nominal current - rounded value: 20 A

Cross section (inflexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 26

Connector orientation: Perpendicular (to the PCB)

AWG max.: 12

Contact material: Cu-alloy, tin plated

Factory colour: Orange

Weight: 27.46 g

Manufacturer part #: 2429670000

Content: 18 pc(s)

Nominal voltage: 300 V

Width: 10.65 mm

Height: 14.2 mm

Length: 17.1 mm

Type: LL 5.00/19/180 3.2SN OR BX

UKCA: not relevant
