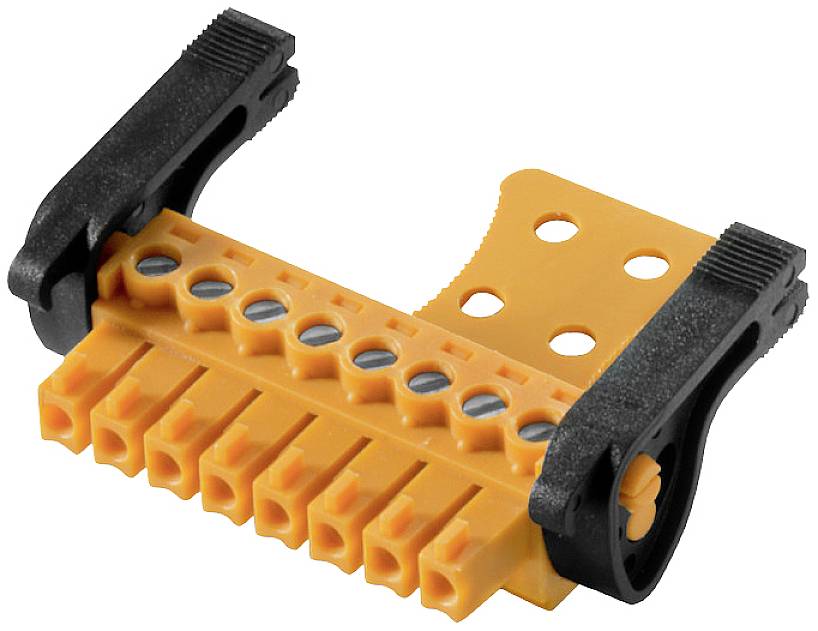

Weidmüller 2442190000 PCB connector Total number of pins 13 No. of rows 1 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
13
CS
3.81 mm
Content
50 pc(s)
Total number of pins
13
Datasheet (PDF)
Highlights & Details
- Total number of pins 13
- No. of rows 1
- Content 50 pc(s)
Our service for you
Technical specifications
- Depth: 39.75 mm
- Insulating material: PA 66 GF 30
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 7 mm
- Tightening torque: 0.2 Nm - 0.25 Nm
- M2 terminal screw
- Conductor connection technology: Draw connection
- Conductor outlet direction: 180°
- Touch protection: IP20
- Insertion force/pole 7 N.
- Pulling force/pole: 5 N.
- Short-term current strength: 3 x 1s with 76 A.
- Mandrel: 2.4 mm x 1.5 mm, 2.4 mm
- Product type
PCB connector
- Total no. of pins
13
- Total number of pins
13
- No. of rows
1
- CS
3.81 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- DIN standard
DIN 5264
- Pins per row
13
- Connection
Screws
Plug
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
2442190000
- Content
50 pc(s)
- Contact material
Copper
- Width
60.12 mm
- Height
17.88 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
BCZ 3.81/13/180LRZE SN OR BX
28 AWG - 16 AWG
- Dim
(W x H) 60.12 mm x 17.88 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Clamping range diameter mm
0.08 mm² - 1.5 mm²
- Connector contact surface
Tin plated
- Dimensions
60.12 mm x 17.88 mm x 39.75 mm
- Nominal voltage
300 V
- Number of pins
13
- Cross section
1 mm²
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
