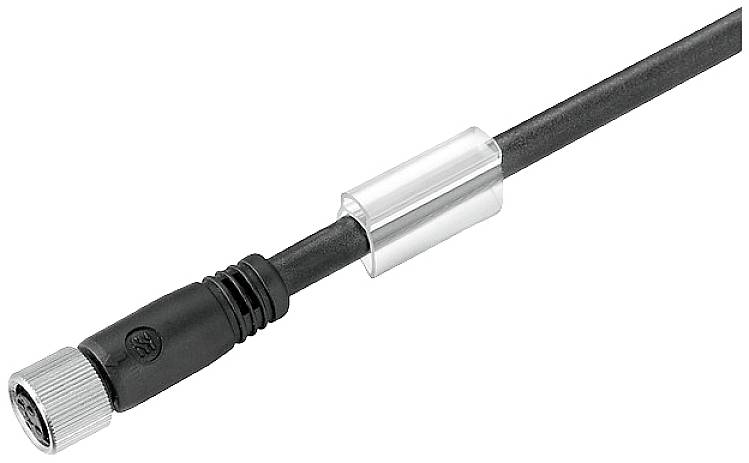

Weidmüller 2466651000 Sensor/actuator connector (pre-fab) M8 10.00 m No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector standard
Sensor connector
Connection side A
M8 socket, straight
Connection side B
Cable, open end
No. of pins
5
Datasheet (PDF)
Technical specifications
- Type
SAIL-M8BG-5-10U
- Product type
Sensor/actuator connector (pre-fab)
- Connector standard
Sensor connector
- Connection side A
M8 socket, straight
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
10.00 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Factory colour
Black
- Thread type connection side
M8
- Coding
B
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
2466651000
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1915609 Weidmüller 2466651000 Sensor/actuator connector (pre-fab) M8 10.00 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1915609 Weidmüller 2466651000 Sensor/actuator connector (pre-fab) M8 10.00 m No. of pins (RJ): 5 1 pc(s)
Description
Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration.
