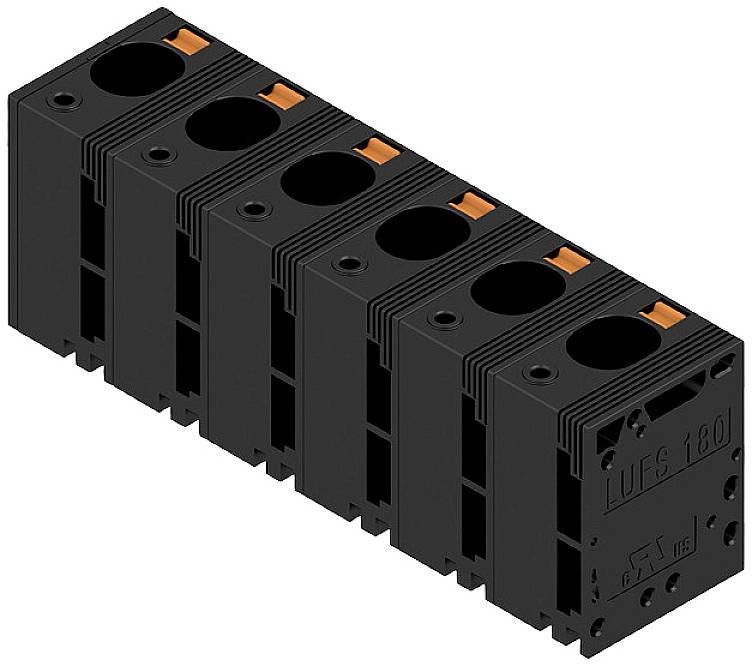

Weidmüller 2492250000 Screw terminal 16 mm² Number of pins 6 Black 10 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
15 mm
Pins per row
6
Number of pins
6
Connection
Print
Push-in connector
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Type
LUFS 15.00/06/180V 5.0SN BK BX
- Product type
Screw terminal
- CS
15 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
LU
- Min. stripping length
18 mm
- Stripping length (max.)
18 mm
- Connection
Print
Push-in connector
- Nominal current
57 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
57 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
18
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
4
- Contact material
Cathode copper
- Factory colour
Black
- Weight
62.16 g
- Manufacturer part #
2492250000
- Content
10 pc(s)
- Nominal voltage
600 V
- Width
86.58 mm
- Height
36.3 mm
- Length
24.7 mm
- Type
LUFS 15.00/06/180V 5.0SN BK BX
- UKCA
not relevant
