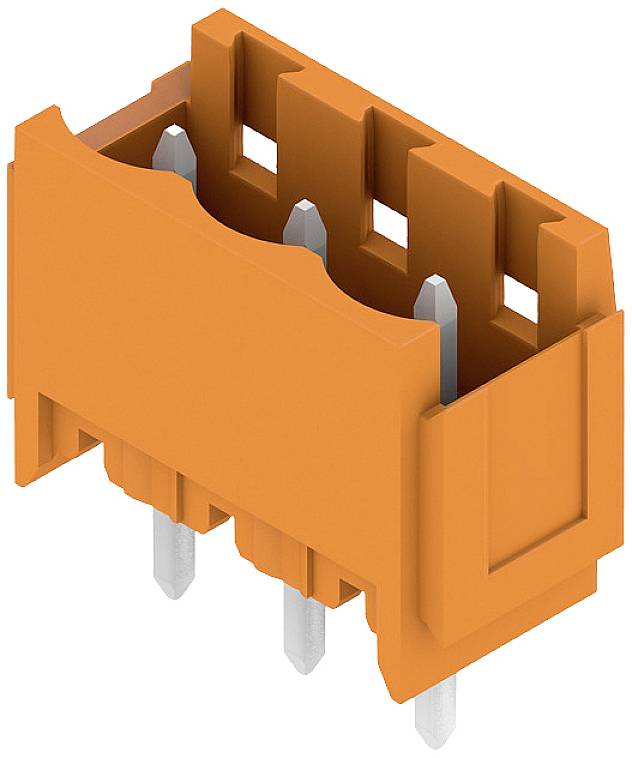

Weidmüller 2496200000 PCB connector Total number of pins 3 No. of rows 1 100 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
3
CS
5.08 mm
Content
100 pc(s)
Total number of pins
3
Datasheet (PDF)
Highlights & Details
- Total number of pins 3
- No. of rows 1
- Content 100 pc(s)
Our service for you
Technical specifications
- Depth: 8.5 mm
- PCB mounting: THT solder connection
- Outlet angle: 180°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Insertion force/pole 10 N.
- Pulling force/pole: 7.5 N.
- Soldering pin length 4.5 mm
- Product type
PCB connector
- Total no. of pins
3
- Total number of pins
3
- No. of rows
1
- CS
5.08 mm
- Nominal current
18.5 A
- Nominal current - rounded value
18.5 A
- Pins per row
3
- Connection
THT
Soldering
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
2496200000
- Content
100 pc(s)
- Contact material
CuMg
- Width
17 mm
- Height
16.5 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 5.08HC/03/180B 4.5SN OR BX
- Dim
(W x H) 17 mm x 16.5 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
17 mm x 16.5 mm x 8.5 mm
- Nominal voltage
300 V
- Number of pins
3
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
4.5 mm
- UKCA
not relevant
