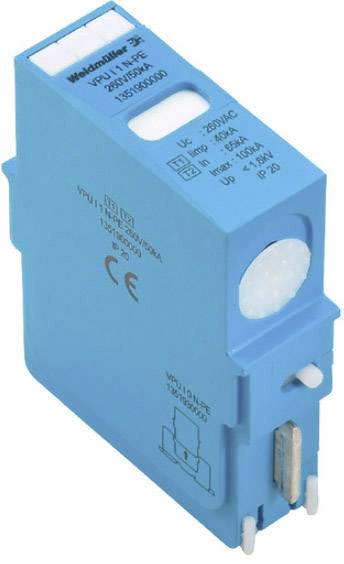

Weidmüller 2520890000 VPU II 0 N-PE 260 40/65 Surge arrester 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Pluggable
- Design: Installation housing; 1 TE, Insta IP20
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Maximum continuous voltage, UC (N-PE) 260 V.
- Short-circuit resistance ISCCR: 100 kA
- Storage temperature -40 °C to 80 °C.
- Conductor connection technology: Screw connection
- Net weight 51.8 g
- Optical function display: No.
- Number of poles: 1
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Leakage current
40 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
≤ 100 ns
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
2520890000
- Type
Type II, Type III
- Factory colour
Blue
- Standards
IEC 61643, EN 61643
- Dim
(W x H x D) 17.8 x 52 x 64 mm
- Width
17.8 mm
- Height
52 mm
- Depth
64 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1915039 Weidmüller 2520890000 VPU II 0 N-PE 260 40/65 Surge arrester 40 kA 1 pc(s)
