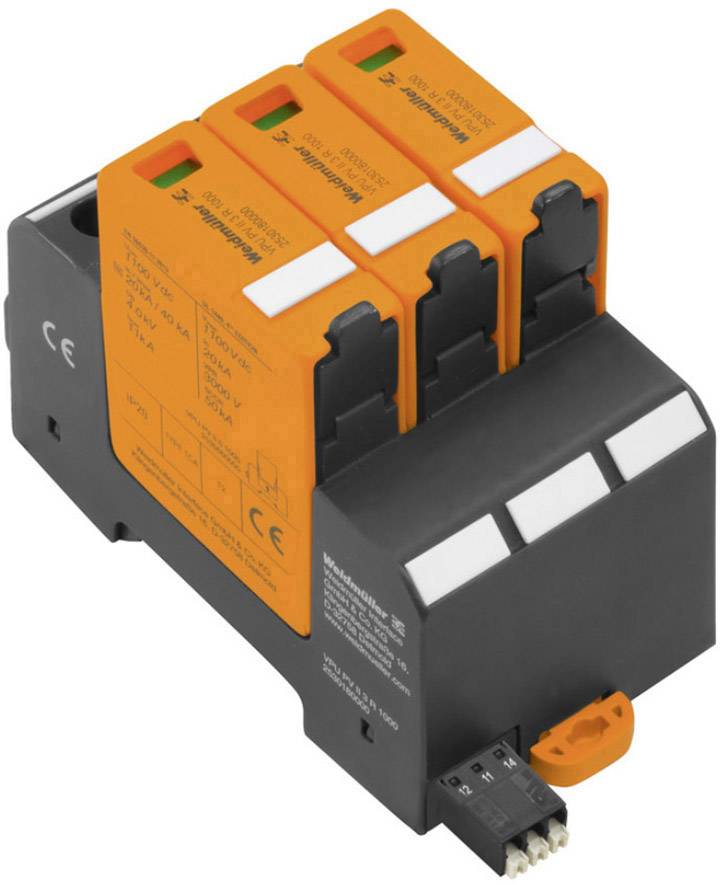

Weidmüller 2530180000 VPU PV II 3 R 1000 Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Wire stripping length: 8 mm
- Wire stripping length rated connection 18 mm
- Connection type: Push-IN
- Tightening torque, max.: 4 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 3 TE, Insta IP20
- Mounting dimensions height 75 mm
- Clamping range, max. 35 mm²
- Clamping range, min. 1.5 mm²
- Short-circuit resistance ISCPV: 11,000 A.
- Storage temperature -40 °C to 85 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Net weight: 386 g
- Optical function display: Green = OK, red = arrester defective, replace
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
1100 V
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
2530180000
- Factory colour
Black
Orange
- Dim
(W x H x D) 54 x 102 x 70 mm
- Width
54 mm
- Height
102 mm
- Depth
70 mm
- Content
1 pc(s)
- UKCA
yes
