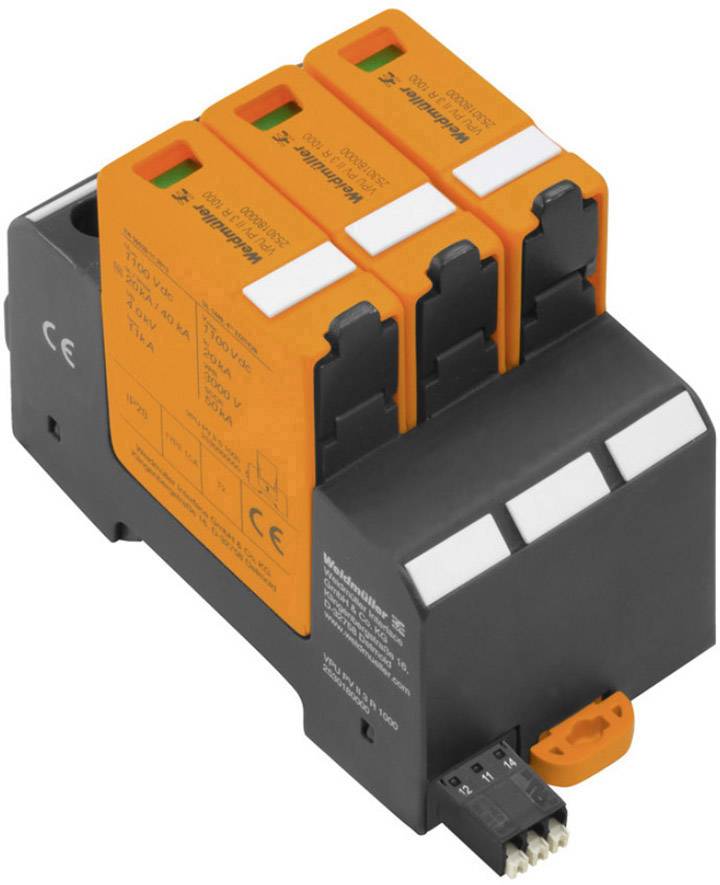

Weidmüller 2530190000 VPU PV I+II 3 R 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Wire stripping length: 8 mm
- Wire stripping length rated connection 18 mm
- Connection type: Push-IN
- Tightening torque, max.: 4 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 3 TE, Insta IP20
- Mounting dimensions height 85 mm
- Clamping range, max. 35 mm²
- Clamping range, min. 1.5 mm²
- Short-circuit resistance ISCPV: 11,000 A.
- Storage temperature -40 °C to 85 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Net weight 448 g
- Optical function display: Green = OK, red = arrester defective, replace
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester (plug-in)
- Leakage current
20 kA
- Nominal voltage
1100 V
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
2530190000
- Factory colour
Black
Orange
- Dim
(W x H x D) 54 x 96 x 70 mm
- Width
54 mm
- Height
96 mm
- Depth
70 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1917438 Weidmüller 2530190000 VPU PV I+II 3 R 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1917438 Weidmüller 2530190000 VPU PV I+II 3 R 1000 E Surge arrester (plug-in) 20 kA 1 pc(s)
Description
The varitector overvoltage protection of the series VPU PV I (type I) and II (Type II) protects VPU PV photovoltaic systems and their components effectively against interference injections by lightning and overvoltages, even well below the limits according to EN 60664-3 by the insulation coordination/DIN VDE 0110-3 specified. In this way, the infrastructure as well as converter systems from overvoltage protected and the plant availability is increased.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
