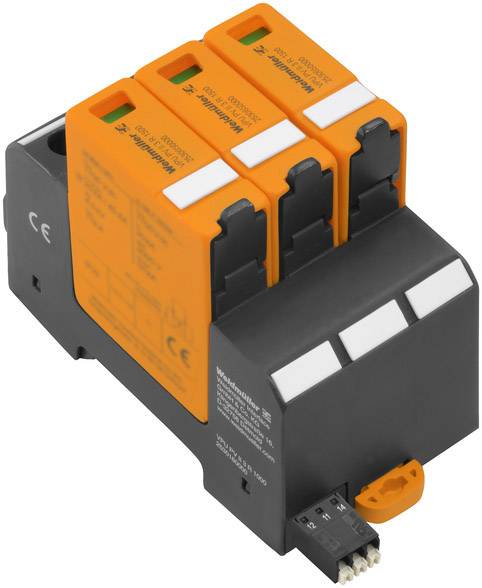

Weidmüller 2530650000 VPU PV II 3 R 1500 Surge arrester (plug-in) Surge protection for: PV systems 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Surge suppressor (Energy Technology/power supply), with remote signalling contact, Type II, DC, 1500 V
- Coded voltage level
- Fitting in installation distributors
- Thermal Protection Function
- This text is machine translated.
Technical specifications
- Wire stripping length: 8 mm
- Wire stripping length rated connection 18 mm
- Connection type: Push-IN
- Tightening torque, max.: 4 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 3 TE, Insta IP20
- Mounting dimensions height 75 mm
- Clamping range, max. 35 mm²
- Clamping range, min. 1.5 mm²
- Short-circuit resistance ISCPV: 11,000 A.
- Storage temperature -40 °C to 85 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Net weight 440 g
- Optical function display: Green = OK, red = arrester defective, replace
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester (plug-in)
- Surge protection for
PV systems
- Leakage current
20 kA
- Nominal voltage
1500 V
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
2530650000
- Type
VPU PV II 3R 1500
- Factory colour
Black
Orange
- Standards
ROHS compliant
- Dim
(L x W x H) 54 x 54 x 102 mm
- Length
54 mm
- Width
54 mm
- Height
102 mm
- Depth
70 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1760880 Weidmüller 2530650000 VPU PV II 3 R 1500 Surge arrester (plug-in) Surge protection for: PV systems 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760880 Weidmüller 2530650000 VPU PV II 3 R 1500 Surge arrester (plug-in) Surge protection for: PV systems 20 kA 1 pc(s)
Description
The varitector overvoltage protection of the series VPU PV I (type I) and II (Type II) protects VPU PV photovoltaic systems and their components effectively against interference injections by lightning and overvoltages, even well below the limits according to EN 60664-3 by the insulation coordination/DIN VDE 0110-3 specified. In this way, the infrastructure as well as converter systems from overvoltage protected and the plant availability is increased.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
The arresters are after the product standard IEC 50539-11/DIN EN 50539-11 tested and in the plant according to the standards IEC 50539-12/DIN EN 50539-12 application, as well as according to IEC 60364-7-712 build of photovoltaic supply systems must be installed.
This text is machine translated.
Hints
Pluggable surge arrester
For the protection of DC systems
High energy absorption at a short response time
Tested according to EN 50539-11
Suitable for use according to IEC 60364-7-712/EN 50539-12
