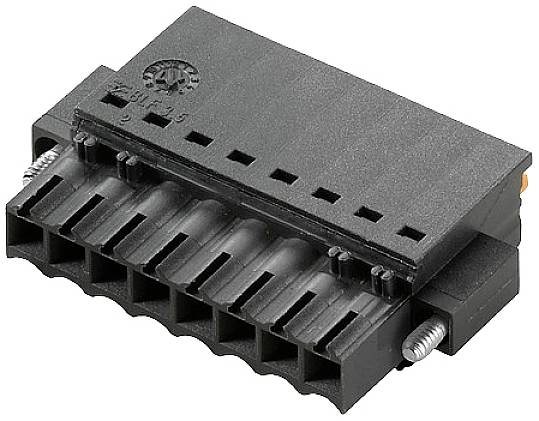

Weidmüller 2538000000 PCB connector Total number of pins 24 No. of rows 1 18 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
24
CS
3.5 mm
Content
18 pc(s)
Total number of pins
24
Datasheet (PDF)
Highlights & Details
- Total number of pins 24
- No. of rows 1
- Content 18 pc(s)
Our service for you
Technical specifications
- Depth: 22.7 mm
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 8 mm
- Conductor connection technology: PUSH-IN, spring connection
- Conductor outlet direction: 180°
- Touch protection: IP20
- Tightening torque screw flange: 0.15 Nm - 0.2 Nm
- Plug power/pole 6 N.
- Pulling power/pole: 6 N.
- Short-term current strength: 1 x 1s with 120 A.
- Color actuators: orange
- Material actuating element: PA 66/6
- Mandrel: 2.4 mm x 1.5 mm
- Product type
PCB connector
- Total no. of pins
24
- Total number of pins
24
- No. of rows
1
- CS
3.5 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- DIN standard
DIN 5264-A
- Pins per row
24
- Connection
Push-in connector
Spring-loaded terminal
- Factory colour
Black
- Case material
PA
- Manufacturer part #
2538000000
- Content
18 pc(s)
- Contact material
Copper
- Width
91 mm
- Height
9 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
BLF 3.50/24/180F SN BK BX
26 AWG - 16 AWG
- Dim
(W x H) 91 mm x 9 mm
- Resistance
5 mΩ
- Insulation resistance
1 MΩ
- Clamping range diameter mm
0.14 mm² - 1.5 mm²
- Connector contact surface
Tin plated
- Dimensions
91 mm x 9 mm x 22.7 mm
- Nominal voltage
300 V
- Number of pins
24
- Cross section
1.5 mm²
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
