Name: Weidmüller 2546130000 PCB connector Total number of pins 5 No. of rows 1 110 pc(s)
Brand: Weidmüller
SKU: 1948954

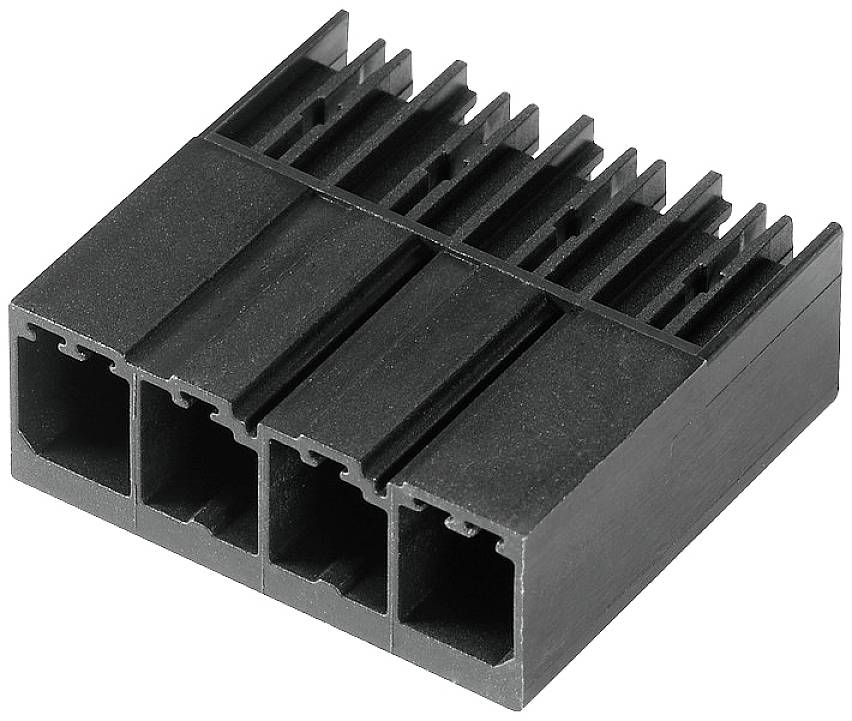

Black plastic plug with four rectangular openings, suitable for connecting electrical cables in electronic devices.

Product type

PCB connector

Total no. of pins

7.62 mm

Content

110 pc(s)

Total number of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Total number of pins 5
No. of rows 1
Content 110 pc(s)

Our service for you

Technical specifications

Product type: PCB connector

Total no. of pins: 5

Total number of pins: 5

No. of rows: 1

CS: 7.62 mm

Nominal current: 40.5 A

Nominal current - rounded value: 40.5 A

Pins per row: 5

Connection: THT
THR
Soldering

Factory colour: Black

Case material: PA

Manufacturer part #: 2546130000

Content: 110 pc(s)

Contact material: Copper

Max. temperature: +130 °C

Min. temperature: -50 °C

Type: SV-SMT 7.62HP/05/90G 2.6SN BK RL

Connector contact surface: Tin plated

Nominal voltage: 600 V

Number of pins: 5

RoHS-compliant: Yes

UKCA: not relevant
