Image similar

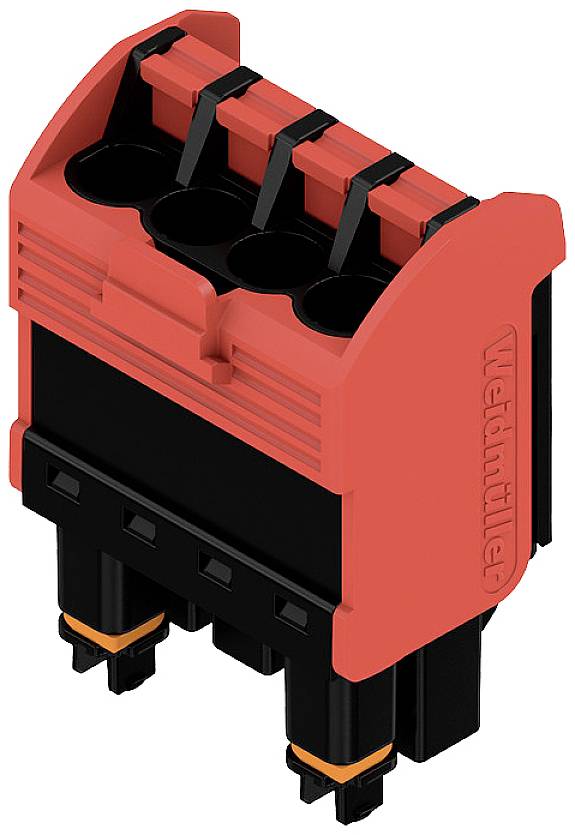

Weidmüller 2555620000 No. of rows 1 78 pc(s)
EAN:
Part number:
Item no:
Connector type
Socket
CS
5 mm
Content
78 pc(s)
Total number of pins
4
No. of rows
1
Highlights & Details
- Total number of pins 4
- No. of rows 1
- Content 78 pc(s)
Our service for you
Technical specifications
- Connector type
Socket
- Total number of pins
4
- No. of rows
1
- CS
5 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Push-in button
Pull spring
- Factory colour
Black
- Case material
Plastic
- Manufacturer part #
2555620000
- Content
78 pc(s)
- Contact material
Copper silver plated
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Type
BHF 5.00/04/180LH BK/RD
- Nominal voltage
300 V
- RoHS-compliant
Yes
IP20
- max. cross section
2.5 mm²
- Stripping length (max.)
10 mm
- Insulation material
Polyamide
- Connection angle
180°
- Min. cross section
0.2 mm²
- UKCA
not relevant
