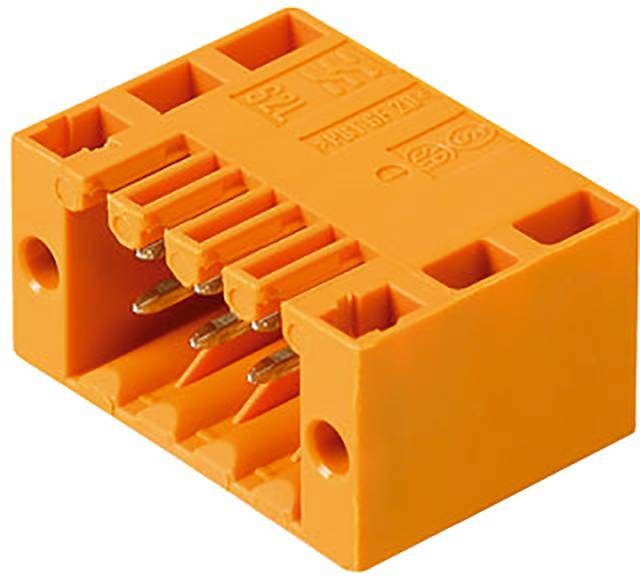

Weidmüller 2559420000 PCB connector Total number of pins 40 20 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
40
CS
3.5 mm
Content
20 pc(s)
Total number of pins
40
Datasheet (PDF)
Highlights & Details
- Total number of pins 40
- Content 20 pc(s)
Our service for you
Technical specifications
- Depth: 14.2 mm
- PCB mounting: THT solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Touch protection: IP10
- Insertion force/pole 5 N.
- Pulling force/pole: 4 N.
- Short-term current strength: 3 x 1s with 77 A.
- Soldering pin length 3.5 mm
- Product type
PCB connector
- Total no. of pins
40
- Total number of pins
40
- CS
3.5 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
THT
Soldering
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
2559420000
- Content
20 pc(s)
- Contact material
Copper
- Width
77 mm
- Height
14 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
S2L 3.50/40/90F 3.5SN OR BX
- Dim
(W x H) 77 mm x 14 mm
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
77 mm x 14 mm x 14.2 mm
- Nominal voltage
150 V
- Number of pins
40
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.5 mm
