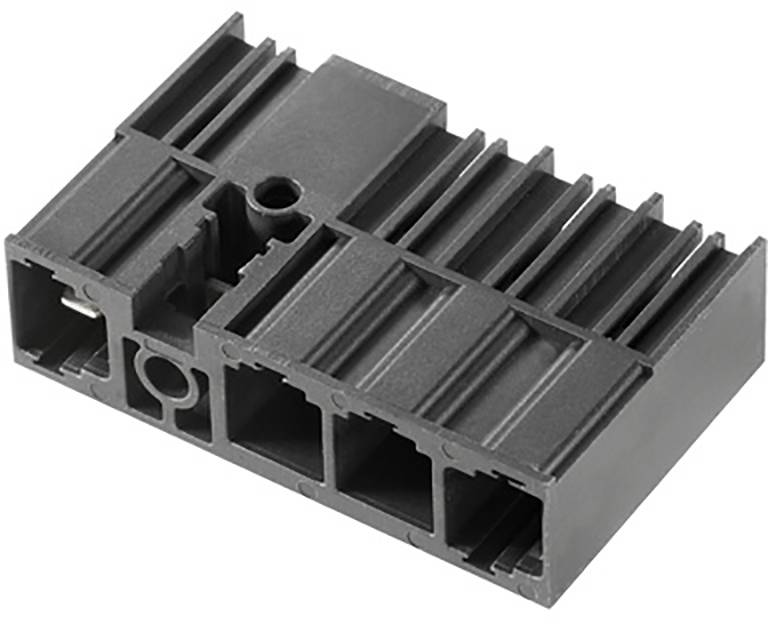

Weidmüller 2597280000 PCB connector Total number of pins 6 20 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
6
CS
10.16 mm
Content
20 pc(s)
Total number of pins
6
Highlights & Details
- Total number of pins 6
- Content 20 pc(s)
Our service for you
Technical specifications
- PCB mounting: THT solder connection
- Departure angle: 90°
- Number of solder pins per pin: 3
- Mounting hole diameter 1.6 mm
- Insulation material: PBT GF
- Storage temperature: -25 °C to +55 °C.
- Creepage distance min. 10.5 mm
- Air distance min.: 8.9 mm
- Touch protection: IP20 inserted
- Short-term current strength: 3 x 1s with 1000 A.
- Soldering pin length 3.5 mm
- Product type
PCB connector
- Total no. of pins
6
- Total number of pins
6
- CS
10.16 mm
- Nominal current
60 A
- Nominal current - rounded value
60 A
- Connection
THT
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
2597280000
- Content
20 pc(s)
- Contact material
Copper
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
SU 10.16HP/06/90MF6 3.5AG BK BX
- Resistance
2 mΩ
- Insulation resistance
100 MΩ
- Nominal voltage
300 V
- Number of pins
6
- RoHS-compliant
Yes
- Mating cycles
50
- Pin length
3.5 mm
