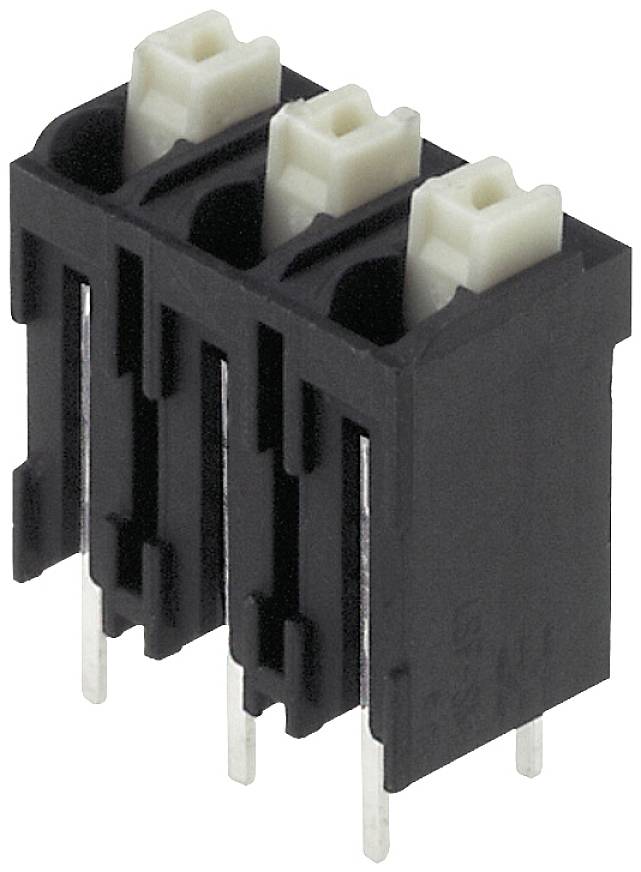

Weidmüller 2599730000 Spring-loaded terminal 1.5 mm² Number of pins 6 Black 504 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded terminal
CS
5.08 mm
Pins per row
6
Number of pins
6
Connection
Print
Push-in connector
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Type
LSF-SMT 5.08/06/180 3.5SN BK TU PRT
- Product type
Spring-loaded terminal
- CS
5.08 mm
- Pins per row
6
- Number of pins
6
- Series
LSF
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Print
Push-in connector
- Nominal current
12 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
12 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
14
- Contact material
Copper alloy
- Factory colour
Black
- Weight
4.81 g
- Manufacturer part #
2599730000
- Content
504 pc(s)
- Nominal voltage
300 V
- Width
29.6 mm
- Height
17.5 mm
- Length
7.8 mm
- Type
LSF-SMT 5.08/06/180 3.5SN BK TU PRT
- UKCA
not relevant
