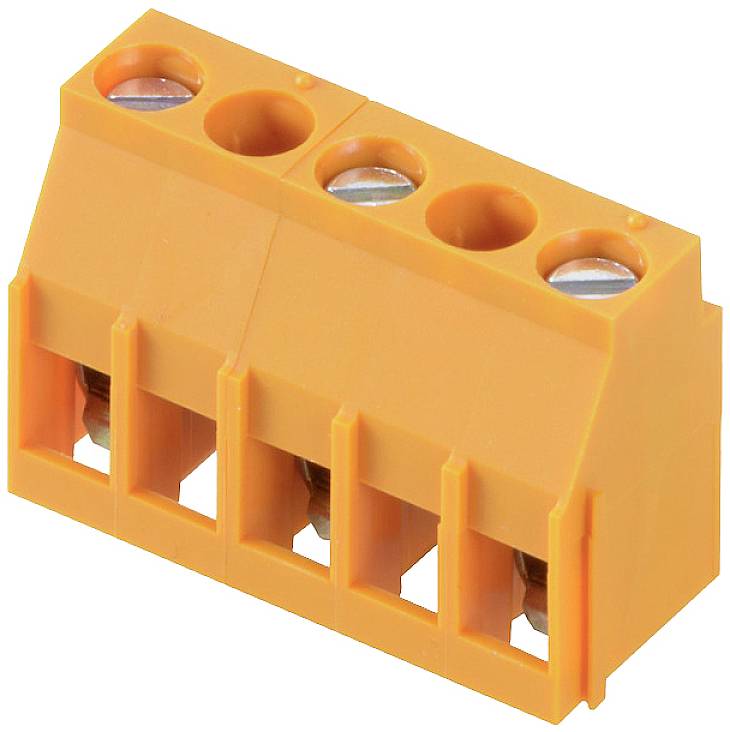

Image similar
Weidmüller 2613360000 Screw terminal 4 mm² Number of pins 5 Orange 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw terminal
CS
10 mm
Pins per row
5
Number of pins
5
Highlights & Details
- Content 50 pc(s)
Our service for you
Technical specifications
- PCB angle/conductor connection 0°/180° (horizontal)Length of pin 3.2 mmNumber of floors: 1Dimensioning surge voltage: 8 kVOperating temperature: -50 °C - +120 °COvervoltage category IIPollution level: 2
- Packaging type
Piece
- Type
LL 10.00/05/90 3.2SN OR BX
- Product type
Screw terminal
- CS
10 mm
- No. of rows
1
- Pins per row
5
- Number of pins
5
- Series
LL
- Stripping length (max.)
6 mm
- Connection
Screws
- Nominal current
30 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
30 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
10
- Contact material
Tin plated
- Enclosure material
Polyamide
- Factory colour
Orange
- Manufacturer part #
2613360000
- Content
50 pc(s)
- Nominal voltage
300 V
- Height
20.3 mm
- UKCA
not relevant
