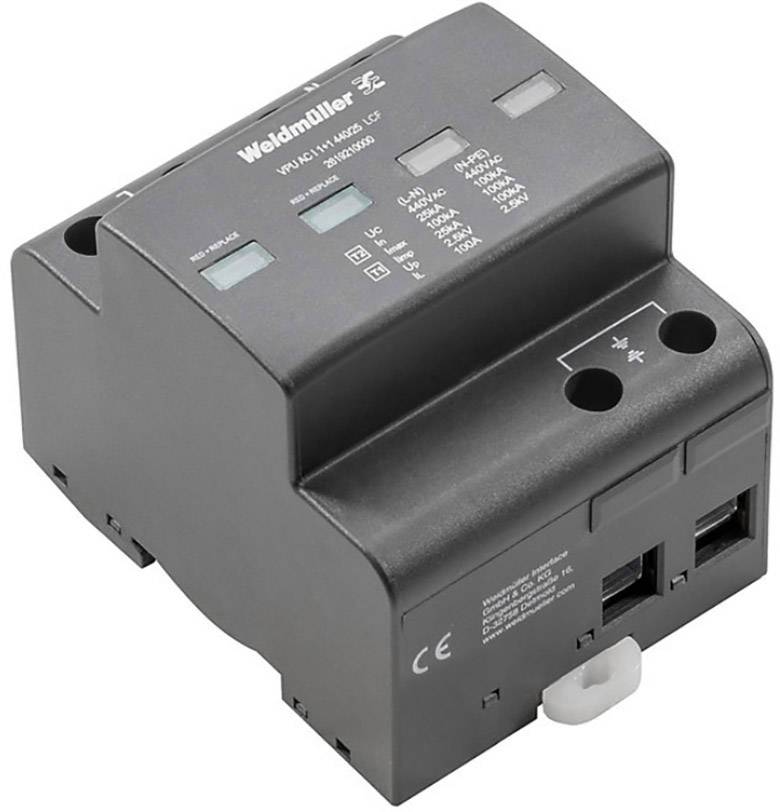

Weidmüller 2619210000 VPU AC I 1+1 440/25 LCF Surge arrester 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Wire stripping length rated connection 13 mm
- Connection type: screw terminals.
- Tightening torque, max.: 3 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 4 TE, Insta IP20
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Maximum continuous voltage, UC (AC) 440 V.
- Maximum continuous voltage, UC (N-PE) 440 V.
- Clamping range, max. 35 mm²
- Clamping range, min.: 6 mm²
- Short circuit resistance ISCCR 50kA
- Storage temperature -40 °C to 85 °C.
- Conductor cross-section, single-wire, max. 35 mm²
- Conductor cross-section, fine strand, max. 35 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Conductor connection technology: Screw connection
- Net weight 25 g
- Optical function display: Green = OK, red = arrester defective, replace
- Number of pins: 2
- Protection level UP (type.): ≤ 2.5 kV
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Leakage current
25 kA
- Nominal voltage
400 V AC
- Pick-up time (details)
≤ 25 ns
- Operating temperature
-40 °C up to +85 °C
IP20 (when built in)
- Manufacturer part #
2619210000
- Type
Type I, Type II
- Factory colour
Black
- Standards
IEC 61643, EN 61643, EN 60068-2-27:2009, EN 60068-2-64:2008, EN 60068-2-6:2008
- Dim
(W x H x D) 72 x 99 x 93 mm
- Width
72 mm
- Height
99 mm
- Depth
93 mm
- Content
1 pc(s)
- UKCA
yes
