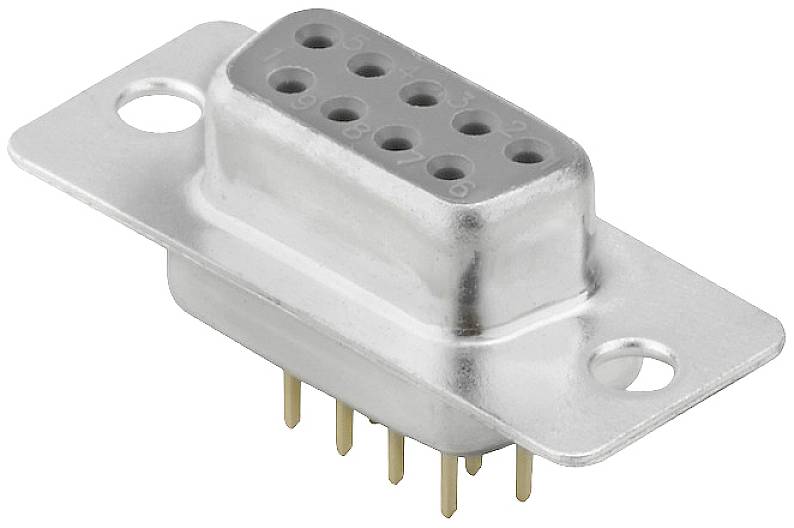

Weidmüller 2626650000 PCB connector Total number of pins 9 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
9
CS
2.77 mm
Content
1 pc(s)
Total number of pins
9
Datasheet (PDF)
Highlights & Details
- Total number of pins 9
- Content 1 pc(s)
Our service for you
Technical specifications
- Depth: 12.55 mm
- PCB mounting: THT solder connection
- Outlet angle: 180°
- Mounting hole diameter 1.1 mm
- Insulation material: PBT glass fiber reinforced UL 94 V-0
- Storage temperature: -55 °C to +85 °C.
- Soldering pin length 4.6 mm
- Contact base material: Copper alloy
- Withstand voltage contact 1000 V/AC
- Shield material: Steel
- Product type
PCB connector
- Total no. of pins
9
- Total number of pins
9
- CS
2.77 mm
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Connection
THT
Soldering
- Factory colour
Grey
- Case material
PA
- Manufacturer part #
2626650000
- Content
1 pc(s)
- Width
30.81 mm
- Max. temperature
+85 °C
- Min. temperature
-55 °C
- Type
D-SUB F6.1 T09VN 3.2N4 TY GY
- Dim
30.81 mm x 12.55
- Resistance
20 mΩ
- Insulation resistance
1000 MΩ
- Connector contact surface
Au
- Dimensions
30.81 mm x 12.55 mm
- Nominal voltage
250 V
- Number of pins
9
- RoHS-compliant
Yes
- Mating cycles
50
- Pin length
4,6 mm
