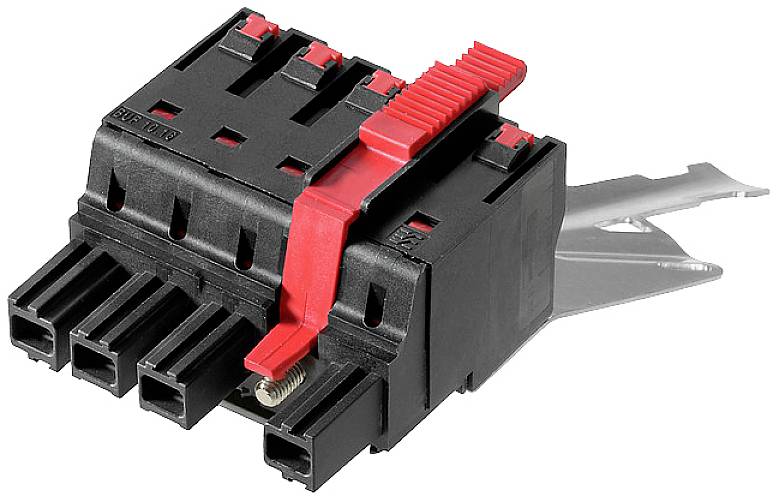

Weidmüller 2627860000 PCB connector Total number of pins 3 20 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
3
CS
10.16 mm
Content
20 pc(s)
Total number of pins
3
Datasheet (PDF)
Highlights & Details
- Total number of pins 3
- Content 20 pc(s)
Our service for you
Technical specifications
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 18 mm
- Conductor connection technology: PUSH-IN with actuator
- Conductor outlet direction: 180°
- Touch protection: IP20
- Tightening torque screw flange: 0.3 Nm - 0.4 Nm
- Insertion force/pole 15 N.
- Pulling force/pole: 15 N.
- Short-term current strength: 3 x 1s with 800A
- Color of actuators: Red, gray
- Material actuating element: PA 66/6, PBT
- Actuator force 120 N.
- Product type
PCB connector
- Total no. of pins
3
- Total number of pins
3
- CS
10.16 mm
- Nominal current
34 A
- Nominal current - rounded value
34 A
- DIN standard
DIN 5264
- Connection
Push-in button
- Factory colour
Black
- Case material
PA
- Manufacturer part #
2627860000
- Content
20 pc(s)
- Contact material
Copper
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
BUF 10.16IT/03/180MSF2SH180 AG BK BX
12 AWG - 4 AWG
- Insulation resistance
100 MΩ
- Clamping range diameter mm
2.5 mm² - 16 mm²
- Nominal voltage
600 V
- Number of pins
3
- Cross section
16 mm²
- RoHS-compliant
Yes
- Mating cycles
50
- UKCA
not relevant
