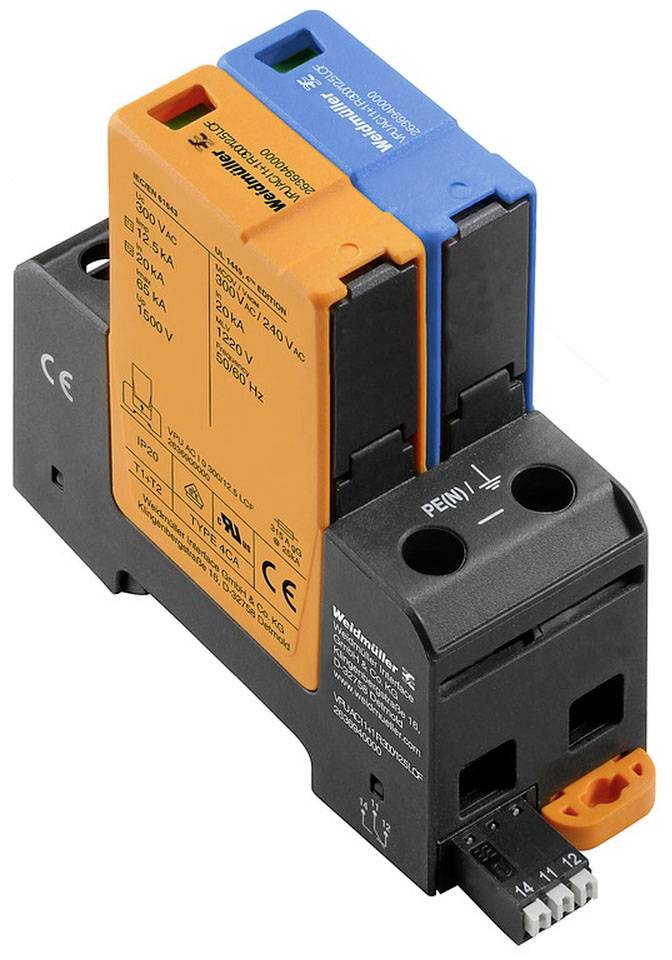

Image similar
Weidmüller 2636940000 VPU AC I 1+1 R 300/12.5 LCF Surge arrester 65 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight 315 g
- Humidity: 5...95 % rel. humidity
- Storage temperature: -40 °C to +85 °C.
- Design: Installation housing; 2 TE, Insta IP20
- Flammability class V-0
- Number of poles: 2
- Pollution level: 2
- OVERVOLTAGE CATEGORY IV, III, II, I.
- Connection type: PUSH-IN
- Optical function display: Green = OK, red = arrester defective, replace
- Segment: Power distribution
- Mounting rail TS 35
- Maximum continuous voltage, UC (AC) 300 V.
- MAINS FORM: SINGLE-PHASE, TN-C, TN-C-S, TN-S, TT
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Short circuit resistance ISCCR 50kA
- Protection level UP (type.) < : 1.5 kV
- Leakage current 1 µA
- Conductor connection technology: Screw connection
- Wire stripping length, measuring connection 15 mm
- Tightening torque, min.: 2 Nm
- Tightening torque, max. 4.5 Nm
- Clamping range, rated connection 16 mm²
- Clamping range, min. 4 mm²
- Clamping range, max. 35 mm²
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 2.5 mm²
- Conductor cross-section, fine strand, max. 35 mm²
- Conductor cross-section, multi-strand, min.: 2.5 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Maximum continuous voltage, UC (N-PE) 305 V.
- Stripped length: 8 mm
- Product type
Surge arrester
- Leakage current
65 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40 °C to +70 °C °C
IP20 (when built in)
- Manufacturer part #
2636940000
- Type
VPU AC I 1+1 R 300/12.5 LCF
- Factory colour
Orange
Black
Blue
- Compatible with (details)
Precounting (leakage-free)
- Dim
(W x H x D) 36 x 106 x 93 mm
- Width
36 mm
- Height
106 mm
- Depth
93 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
