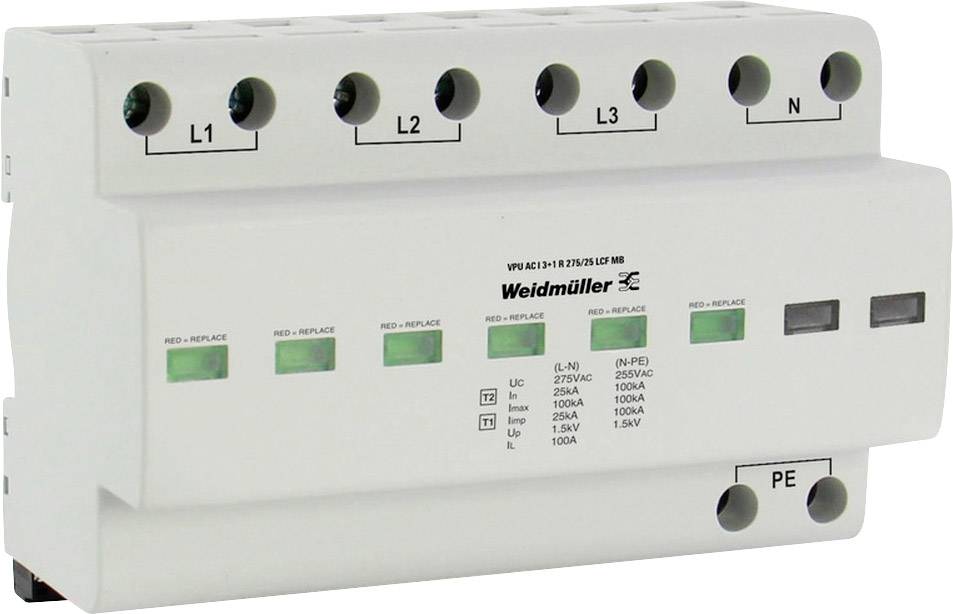

Weidmüller 2638070000 VPU AC I 3+1 R 275/25 LCF MB Surge arrester 100 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight 1079 g
- Humidity: 5...95 % rel. humidity
- Storage temperature: -40 °C to +85 °C.
- Flammability class V-0
- Number of pins: 4
- Pollution level: 2
- Overvoltage category II
- Connection type: Screw connection: Plug-in
- Optical function display: Green = OK, red = arrester defective, replace
- Segment: Power distribution
- Mounting rail TS 35
- Maximum continuous voltage, UC (AC) 275 V.
- MAINS FORM: TN-C-S, TN-S, TT, IT WITH N, IT WITHOUT N.
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Short circuit resistance ISCCR 50kA
- Leakage current 5 µA
- Wire stripping length, measuring connection 15 mm
- Tightening torque, min.: 2 Nm
- Tightening torque, max.: 3 Nm
- Clamping range, rated connection 16 mm²
- Clamping range, min. 4 mm²
- Clamping range, max. 35 mm²
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min.: 4 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, min.: 4 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Maximum continuous voltage, UC (N-PE): 255 V.
- Stripped length: 8 mm
- Rated load current IL 100 A.
- Product type
Surge arrester
- Leakage current
100 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
100 ns
- Operating temperature
-40 °C up to +85 °C
IP20 (when built in)
- Manufacturer part #
2638070000
- Type
VPU AC I 3+1 R 275/25 LCF MB
- Factory colour
Grey
- Dim
(W x H x D) 144 x 99 x 71 mm
- Width
144 mm
- Height
99 mm
- Depth
71 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2241201 Weidmüller 2638070000 VPU AC I 3+1 R 275/25 LCF MB Surge arrester 100 kA 1 pc(s)
