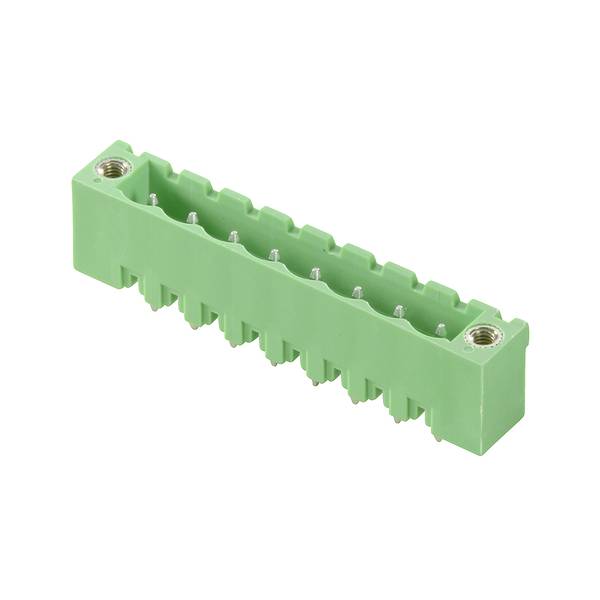

Weidmüller 2645510000 PCB connector Total number of pins 12 No. of rows 1 1 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
12
Connector type
Pin
CS
5 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (PCB terminal), 320 V, 15 A, pitch in mm: 5.00, pin number 12, THT solder connection, box
- No. of rows 1
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
12
- Connector type
Pin
- Connector orientation
Perpendicular (to the PCB)
- No. of rows
1
- CS
5 mm
- Connection
THR
- Factory colour
Green
- Case material
PA
- Manufacturer part #
2645510000
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
CH 5.00/12/180F 3.9SN GN BX
- Board contact surface
Tin
- Nominal voltage
320 V
- Number of pins
12
- Pin length
3.9 mm
Flexible PCB-connector
Green
320 V
12
Pin
-40-105 °C
Solder
4 kV
THR connection
Tin
II
2
3.9 mm
5 mm
1
Other
5 mm
Fixed connector
Polyamide (PA)
90° (upwards vertical)
Other
V0
Documents & Downloads
Datasheet
Datasheet 3767468 Weidmüller 2645510000 PCB connector Total number of pins 12 No. of rows 1 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767468 Weidmüller 2645510000 PCB connector Total number of pins 12 No. of rows 1 1 pc(s) Box
Description
Plug-in board connection with innovative connection technology for safe and intuitive handling.
