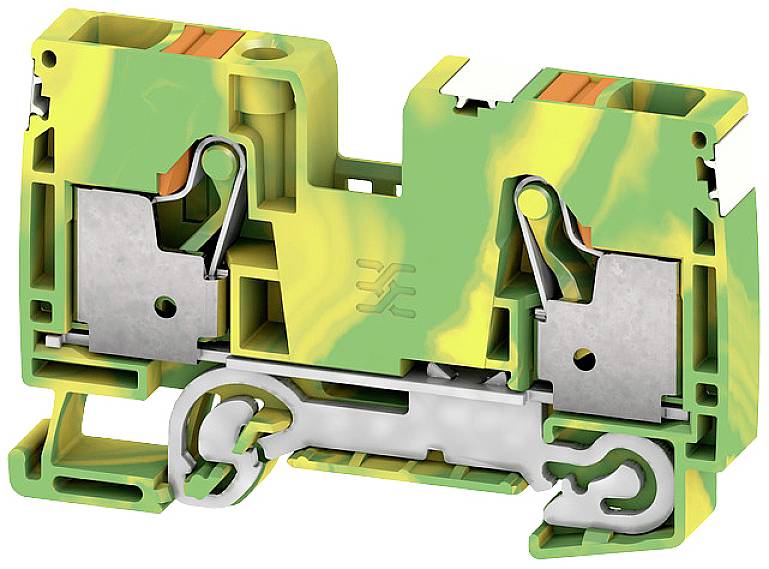

Weidmüller 2674960000 PG terminal 10 mm Jack connector Green-yellow 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PG terminal
Connection
Jack connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Highlights & Details
- A2C 10 PE DL
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Features
+ push-in spring bracket
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
10 mm
- No. of rows
1
- Factory colour
Green-yellow
- Manufacturer part #
2674960000
- Content
25 pc(s)
- Type
A2C 10 PE DL
- Dim
(L x W x H) 51.5 x 10 x 51.5 mm
- Width
10 mm
- Height
51.5 mm
- Length
51.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Green-yellow
- Insulation material
Thermoplastic
- UKCA
yes
