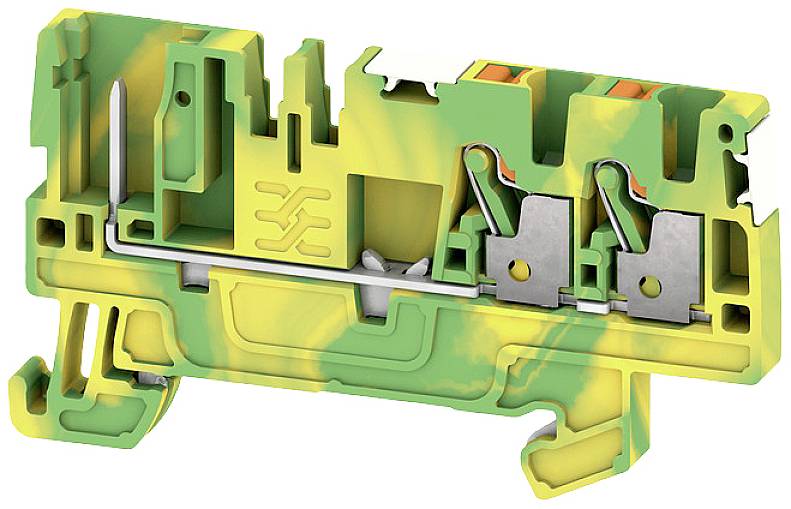

Weidmüller 2675870000 PG terminal Push-in connector, Jack connector Green-yellow 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PG terminal
Connection
Push-in connector
Jack connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.5 mm²
Highlights & Details
- APGTB 2.5 PE 3C/1 DL
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
1
- Factory colour
Green-yellow
- Manufacturer part #
2675870000
- Content
50 pc(s)
- Type
APGTB 2.5 PE 3C/1 DL
- Dim
(W x H) 5.1 mm x 36.5 mm
- Width
5.1 mm
- Height
36.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
