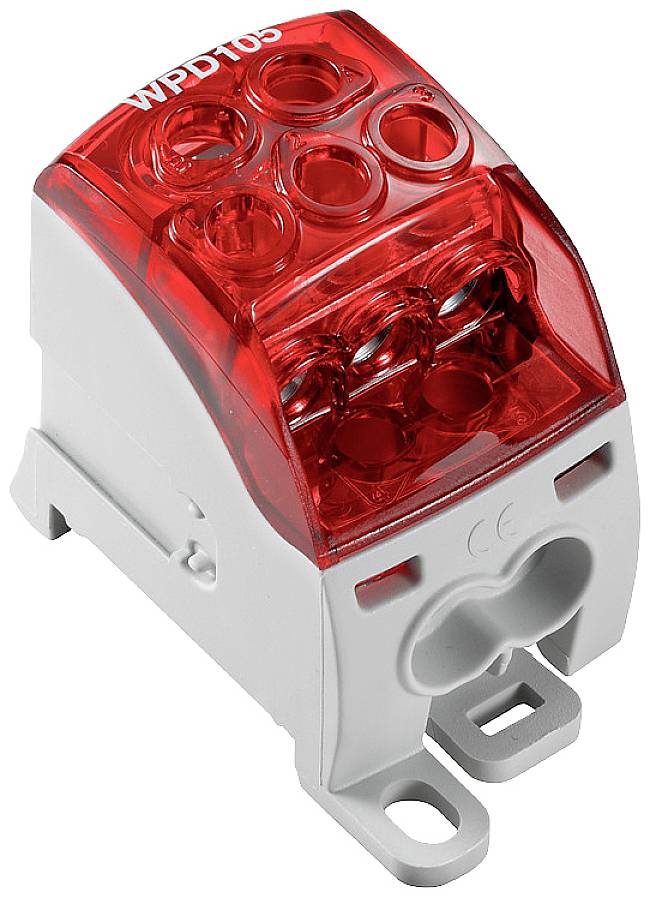

Weidmüller 2725310000 Distribution block 35.6 mm Screws Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
214 A
Highlights & Details
- WPD 105 1X35+1X16/2X25+3X16 RD
Technical specifications
- Product type
Distribution block
- Features
built-in jumper
- Connection
Screws
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (max.)
35 mm²
- Clamp width
35.6 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Red
- Nominal current
214 A
- Nominal current - rounded value
214 A
- Manufacturer part #
2725310000
- Content
1 pc(s)
- Type
WPD 105 1X35+1X16/2X25+3X16 RD
- Dim
(L x W x H) 70 x 35.6 x 70 mm
- Width
35.6 mm
- Height
70 mm
- Length
70 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
yes
