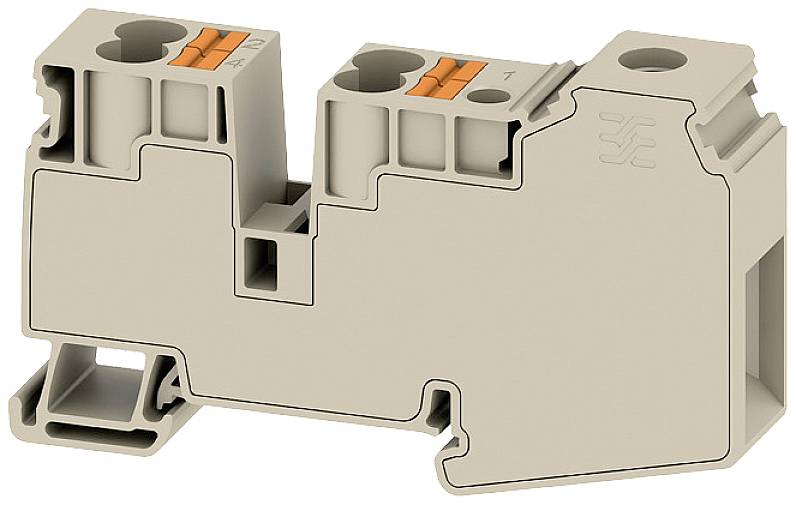

Weidmüller 2728630000 Feeder terminal 16.2 mm Screws Beige 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feeder terminal
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Highlights & Details
- AWPD 35 4X10
Technical specifications
- Packaging type
Piece
- Product type
Feeder terminal
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- Clamp width
16.2 mm
- No. of rows
1
- Pins per row
5
- Factory colour
Beige
- Nominal current
110 A
- Nominal current - rounded value
110 A
- Nominal voltage
1000 V
- Manufacturer part #
2728630000
- Content
20 pc(s)
- Type
AWPD 35 4X10
- Dim
(L x W x H) 95 x 16.2 x 86.18 mm
- Width
16.2 mm
- Height
86.18 mm
- Length
95 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
