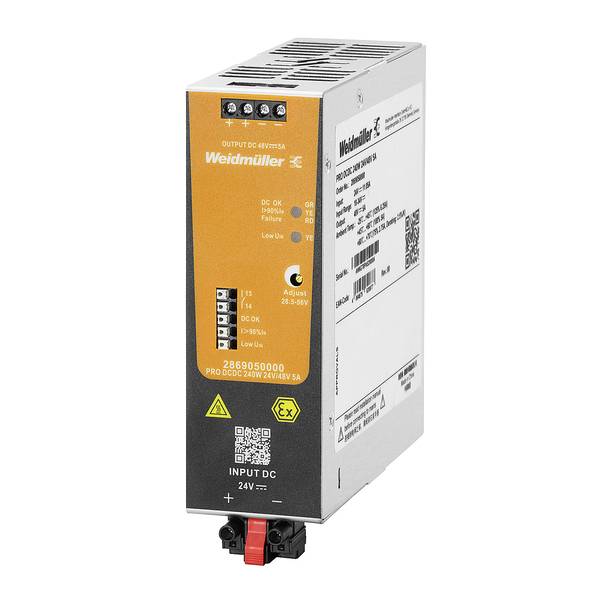

Weidmüller 2869050000 DC/DC converter 48 V 6 A 240 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
Mounting rail mounting, wall mounting
- Product type
DC/DC converter
- Min. input voltage
18 V DC
- Input voltage (max.)
34 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A
240 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
48 V
- Connection
Screws
- Dim
(L x W) 120 mm x 43 mm
- Output voltage (max.)
56 V
- Output voltage (min.)
28.5 V
- Manufacturer part #
2869050000
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
43 mm
- Length
120 mm
IP20
- Type
PRO DCDC 240W 24V/48V 5A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3745725 Weidmüller 2869050000 DC/DC converter 48 V 6 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3745725 Weidmüller 2869050000 DC/DC converter 48 V 6 A 240 W Content 1 pc(s)
Description
The DC/DC converter protects the system from failures in order to guarantee a maximum availability. It compensates voltage fluctuations and regenerates the output voltage by ensuring stable voltage at the end of long cables.
