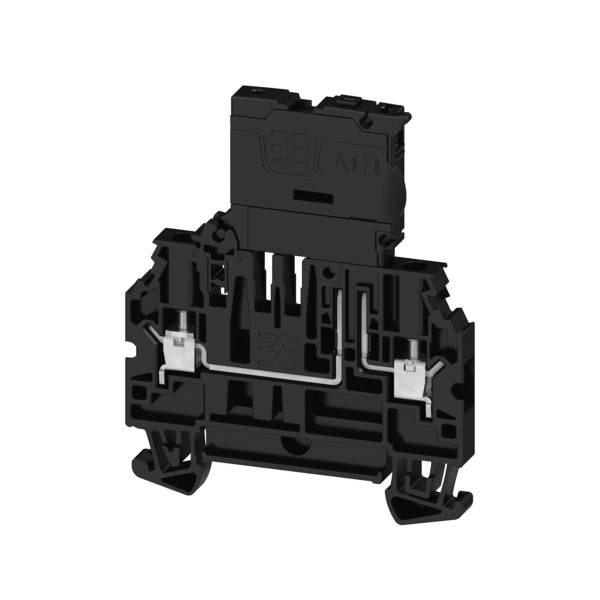

Weidmüller 2892970000 Fuse serial terminal Screws Black 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Highlights & Details
Fuse terminal block, screw connection, black, 4 mm², 6.3 A, 250 V, number of connections: 2, number of floors: 1, TS 35
- W2C 4 FS 100-250V BK STB
Technical specifications
- Product type
Fuse serial terminal
- Features
+ swivelling fuse holder
+ LED display
- Connection
Screws
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Factory colour
Black
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
250 V
- Manufacturer part #
2892970000
- Content
50 pc(s)
- Type
W2C 4 FS 100-250V BK STB
- Dim
(L x W) 75 mm x 6.1 mm
- Width
6.1 mm
- Length
75 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750694 Weidmüller 2892970000 Fuse serial terminal Screws Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3750694 Weidmüller 2892970000 Fuse serial terminal Screws Black 50 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. With removable carrier for fuse insert.
This text is machine translated.
This text is machine translated.
What kind of Serial Terminals are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
Conrad Electronic
€ 7.99*
