Weidmüller 2896950000 Fuse serial terminal Screws Blue 5 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details

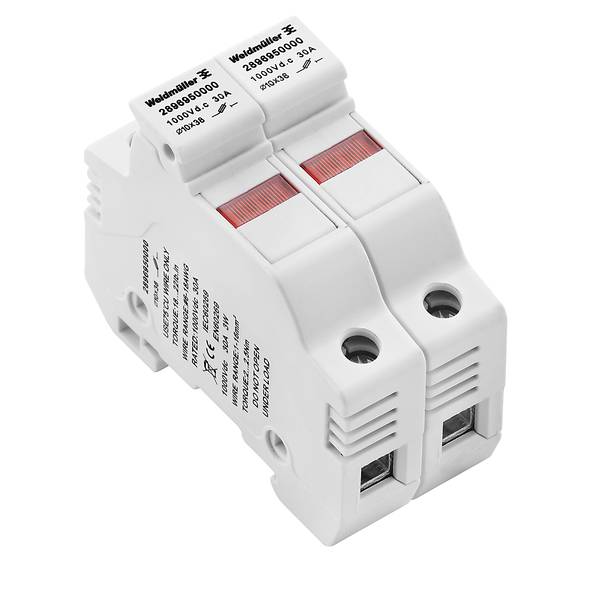

Fuse terminal block, screw connection, light blue, 10 mm², 30 A, Number of connections: 2, number of floors: 2, TS 35
- FUSEHOLDER WSFH/2 10X38 1KV LED
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Features
+ swivelling fuse holder
+ LED display
- Connection
Screws
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
1 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
2
- Factory colour
Blue
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Manufacturer part #
2896950000
- Content
5 pc(s)
- Type
FUSEHOLDER WSFH/2 10X38 1KV LED
- Dim
(L x W) 61 mm x 18 mm
- Width
18 mm
- Length
61 mm
- Connector colour
Blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750770 Weidmüller 2896950000 Fuse serial terminal Screws Blue 5 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750770 Weidmüller 2896950000 Fuse serial terminal Screws Blue 5 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. With removable carrier for fuse insert.
This text is machine translated.
This text is machine translated.
