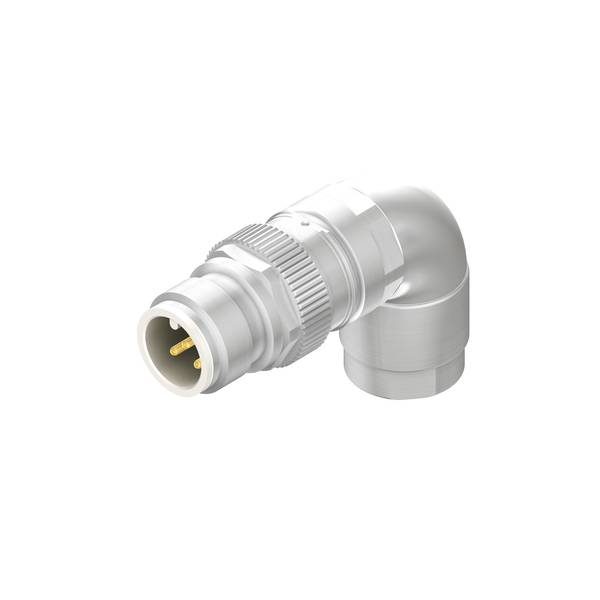

Weidmüller 2968400000 DIN connector Plug, right angle Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Plug, right angle
Total no. of pins
5
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
SAISWC-M-5B-4/9-M12-CG
- Product type
DIN connector
- Connector type
Plug, right angle
- Total no. of pins
5
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Nominal voltage
50 V
- Contact material
Gold
- Cable Ø (max.)
9 mm
- Cable Ø up to
4 mm
- Code
B
- Manufacturer part #
2968400000
- Cable Ø range
4 - 9 mm
- Number of pins
5
- (Ø)
14 mm
- max. cross section
0.82 mm²
- Min. cross section
0.08 mm²
- Cross-section range
0.08 - 0.82 mm²
- Feature
shielded
IP67 (when installed)
Other
50 V
TRUE
Pin
Other
Other
FALSE
-40-85 °C
V0
Crimp connection
Gold
3
Angled
0.08-0.82 mm²
0.08-0.82 mm²
IP67
FALSE
14 mm
4 A
4-9 mm
5
5
5
Brass
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3748193 Weidmüller 2968400000 DIN connector Plug, right angle Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748193 Weidmüller 2968400000 DIN connector Plug, right angle Total number of pins: 5 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
