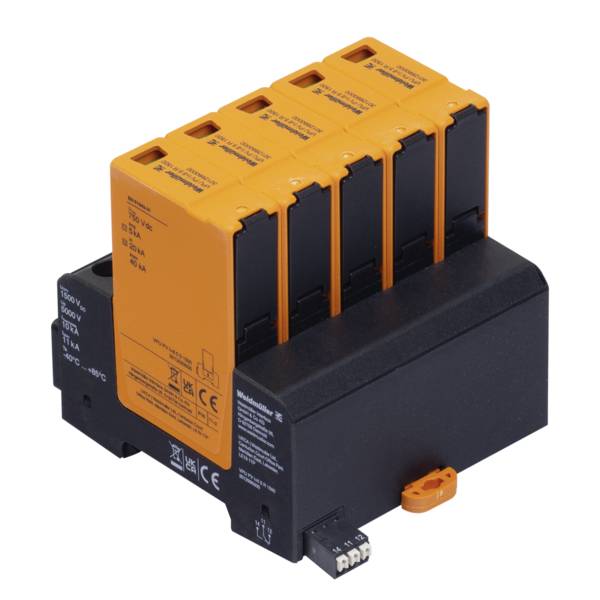

Weidmüller 3012990000 VPU PV I+II 5 R 1500 Lightning conductor Surge protection for: PV systems Piece 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Lightning conductor
- Surge protection for
PV systems
- Nominal voltage
1500 V DC
- Type
5-pin
- Manufacturer part #
3012990000
- Type
VPU PV I+II 5 R 1500
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749394 Weidmüller 3012990000 VPU PV I+II 5 R 1500 Lightning conductor Surge protection for: PV systems Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3749394 Weidmüller 3012990000 VPU PV I+II 5 R 1500 Lightning conductor Surge protection for: PV systems Piece 1 pc(s)
Description
The equipment is a lightning and overvoltage protection Type I and is also tested as Type II-device for Photovoltaic (PV) applications It can be installed behind the PV inverter and protects against direct lightning strikes and overvoltage caused by switching operations or indirect lightning. The portfolio enables worldwide use in high-altitude regions and offers long warranty periods. The application will be installed on a mounting rail.
