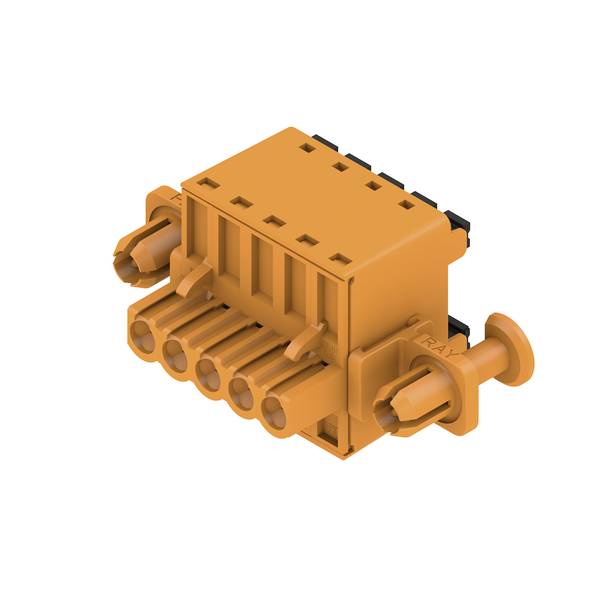

Weidmüller 3109700000 PCB connector Total number of pins 5 24 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
5
Connector type
Socket
CS
5.08 mm
Content
24 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (conductor connection), 320 V, 20.8 A, pitch in mm: 5.08, 3.31 mm², number of poles: 5, PUSH IN with button, box
- Content 24 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
5
- Connector type
Socket
- Connector orientation
Perpendicular (to the PCB)
- CS
5.08 mm
- Nominal current
17.9 A
- Nominal current - rounded value
17.9 A
- Connection
Plug & Clip
- Factory colour
Orange
- Case material
Plastic
- Manufacturer part #
3109700000
- Content
24 pc(s)
- Contact material
Copper silver plated
- Max. temperature
100 °C
- Min. temperature
-50 °C
- Type
BLDF 5.08/05/180DF SN OR BX
- Connector contact surface
Tin
- Nominal voltage
320 V
- Number of pins
5
- Cross section
2.5 mm²
Flexible PCB-connector
Orange
320 V
5
Bus
Plastic
Uncoated
-50-100 °C
4 kV
2000
Push-in clamp connection
Tin
III
2
Tubular cable
5.08 mm
5.08 mm
0.2-2.5 mm²
0.25-2.5 mm²
0.2-2.5 mm²
Other
FALSE
Polybutylene terephthalate
Copper
90° (upwards vertical)
17.9 A
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3749644 Weidmüller 3109700000 PCB connector Total number of pins 5 24 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3749644 Weidmüller 3109700000 PCB connector Total number of pins 5 24 pc(s) Box
Description
Pluggable PCB connection with innovative connection technology for safe and intuitive use.
