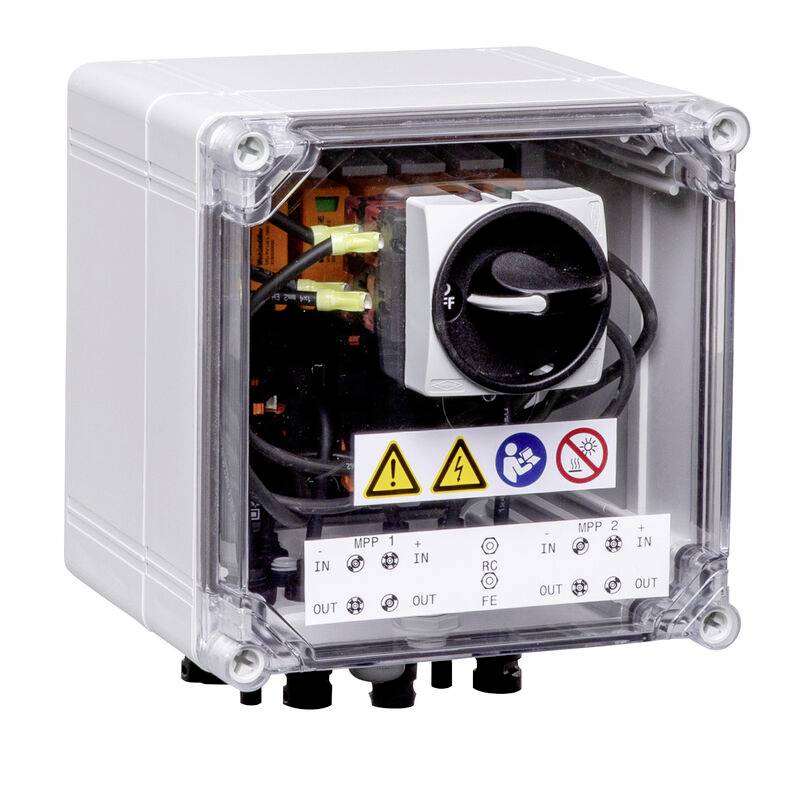

Weidmüller 3116990000 PVN DC 1I 1O 2MPP SW SPD1R EVO 11 Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Compatible with (details)
Photovoltaic
- Product type
Generator junction box
- Dim
(W x D) 200 mm x 226 mm
- Type
2 MPP
- Factory colour
White
- Content
1 pc(s)
- Width
200 mm
- Depth
226 mm
- System voltage
1100 V
White
200 mm
236 mm
226 mm
MC4-Evo 2
2
0 A
Other
-40-50 °C
Plastic
TRUE
TRUE
FALSE
IK08
IP65
TRUE
TRUE
None
1100 V
35 A
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3749509 Weidmüller 3116990000 PVN DC 1I 1O 2MPP SW SPD1R EVO 11 Generator junction box
User & Safety Instructions
User & Safety Instructions 3749509 Weidmüller 3116990000 PVN DC 1I 1O 2MPP SW SPD1R EVO 11 Generator junction box
Description
Generator connection box for inverters with 2 MPP trackers, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32. MPP1: 1 input, connection via MC4-Evo 2 connector, compatible with the cable design TÜV 2 Pfg1169/08.07 / EN 50618:2063 1 output, connection via MC4-Evo 2 connector, compatible with the cable design TÜV 2 Pfg1169/08.07 / EN 50618:2063 MPP2: Identical with MPP1 Max. Tension voltage Uoc: 1,100 VDC 1 class/type I + II combined conductor with signal contact With lockable DC switch disconnectors for safe separation of branch lines in accordance with DIN EN IEC 60947-3
Connection of the signal contact via M16 cable glands (clamping range 5-10 mm Ø) max. Cable diameter: 1.5 mm² Connection of the functional ground via M16 cable glands (clamping range 5-10 mm Ø) Cable diameter >: = 16 mm² Protection class: IP65 All installed in a glass fiber reinforced polyester housing. Dimensions HxWxT: 236x200x226.2 mm approval in accordance with the low-voltage switching devices IEC 61439-1 and EN 61439-2
This text is machine translated.
Connection of the signal contact via M16 cable glands (clamping range 5-10 mm Ø) max. Cable diameter: 1.5 mm² Connection of the functional ground via M16 cable glands (clamping range 5-10 mm Ø) Cable diameter >: = 16 mm² Protection class: IP65 All installed in a glass fiber reinforced polyester housing. Dimensions HxWxT: 236x200x226.2 mm approval in accordance with the low-voltage switching devices IEC 61439-1 and EN 61439-2
