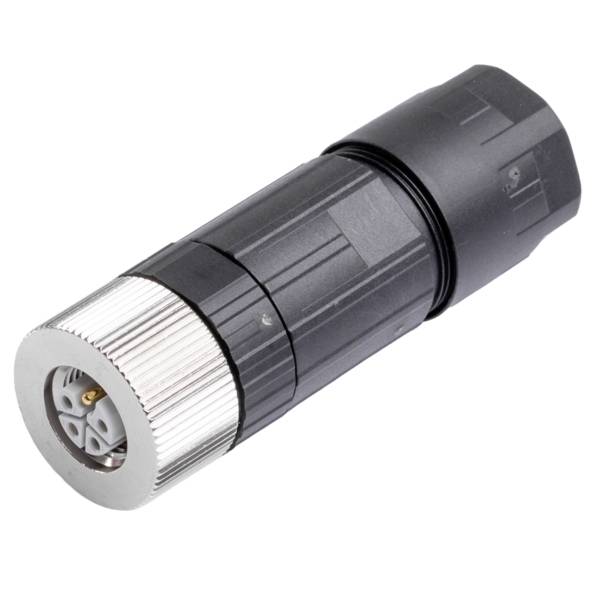

Weidmüller 3119510000 DIN connector Socket, straight Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Socket, straight
Total no. of pins
5
Connection
Plug & Clip
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
SAIBGP-P-5L-8/13.5-M12
- Product type
DIN connector
- Connector type
Socket, straight
- Total no. of pins
5
- Connection
Plug & Clip
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Contact material
Gold on nickel
- Cable Ø (max.)
13 mm
- Cable Ø up to
8 mm
- Case material
Plastic
- Code
L
- Manufacturer part #
3119510000
- Cable Ø range
8 - 13 mm
- Number of pins
5
- (Ø)
23 mm
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Cross-section range
1.5 - 2.5 mm²
IP67 (when installed)
Other
FALSE
Bus
Plastic
None
-40-85 °C
V0
Push-in clamp connection
Nickel/gold
III
3
Straight
1.5-2.5 mm²
1.5-2.5 mm²
1.5-2.5 mm²
1.5-2.5 mm²
IP67
23 mm
16 A
8-13 mm
5
5
5
Zinc die-cast
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3748346 Weidmüller 3119510000 DIN connector Socket, straight Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748346 Weidmüller 3119510000 DIN connector Socket, straight Total number of pins: 5 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
