Weidmüller 7789014010 PAC-CMLX-RV24-V0-1M PLC cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

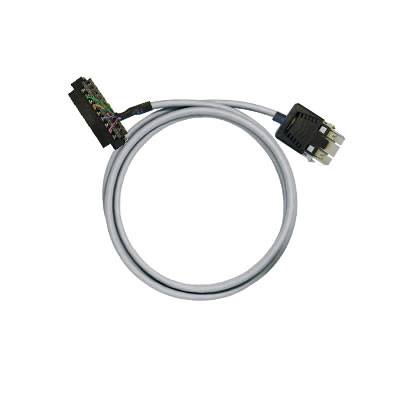

Pre-fabricated data cable
- PAC CMLX-RV 24 V 0-1 m
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: WEIDUELLER RSV 24P connector
- Connection SPS: ROCKWELL COMPACT LOGIX 1769-RTBN 18P
- Outer diameter: 9.2 ± 1 mm
- Cable: LiYY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 250 Vdc ≤ 250 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Height
335 mm
- Length
86 mm
- Width
146 mm
- Dim
(L x W x H) 86 x 146 x 335 mm
- Manufacturer part #
7789014010
- Type
PAC-CMLX-RV24-V0-1M
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Cable length
1.00 m
- Material
PVC
- Number of pins
24
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
364 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256509 Weidmüller 7789014010 PAC-CMLX-RV24-V0-1M PLC cable
User & Safety Instructions
User & Safety Instructions 256509 Weidmüller 7789014010 PAC-CMLX-RV24-V0-1M PLC cable
Description
Pre-fabricated data cable. Pre-fabricated cable, PAC, cable LiYY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
